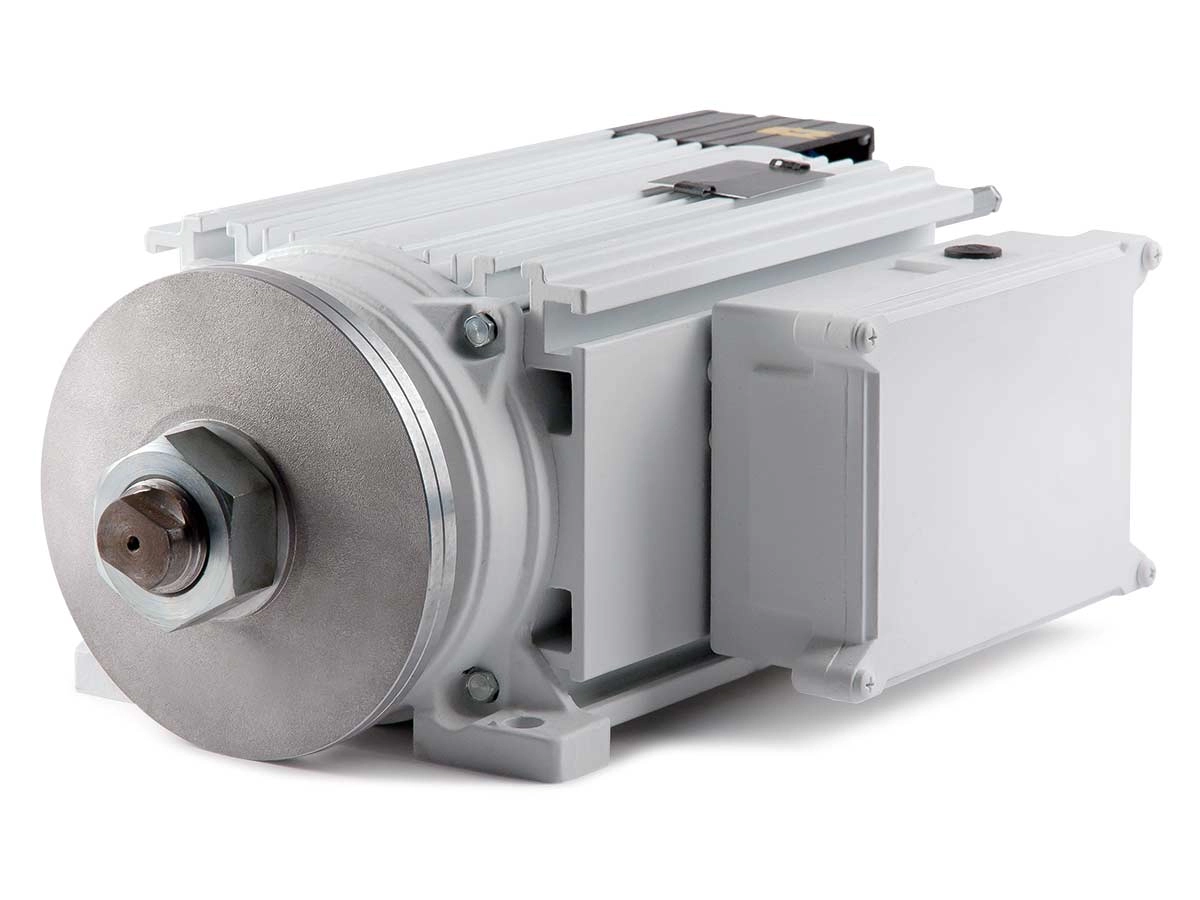

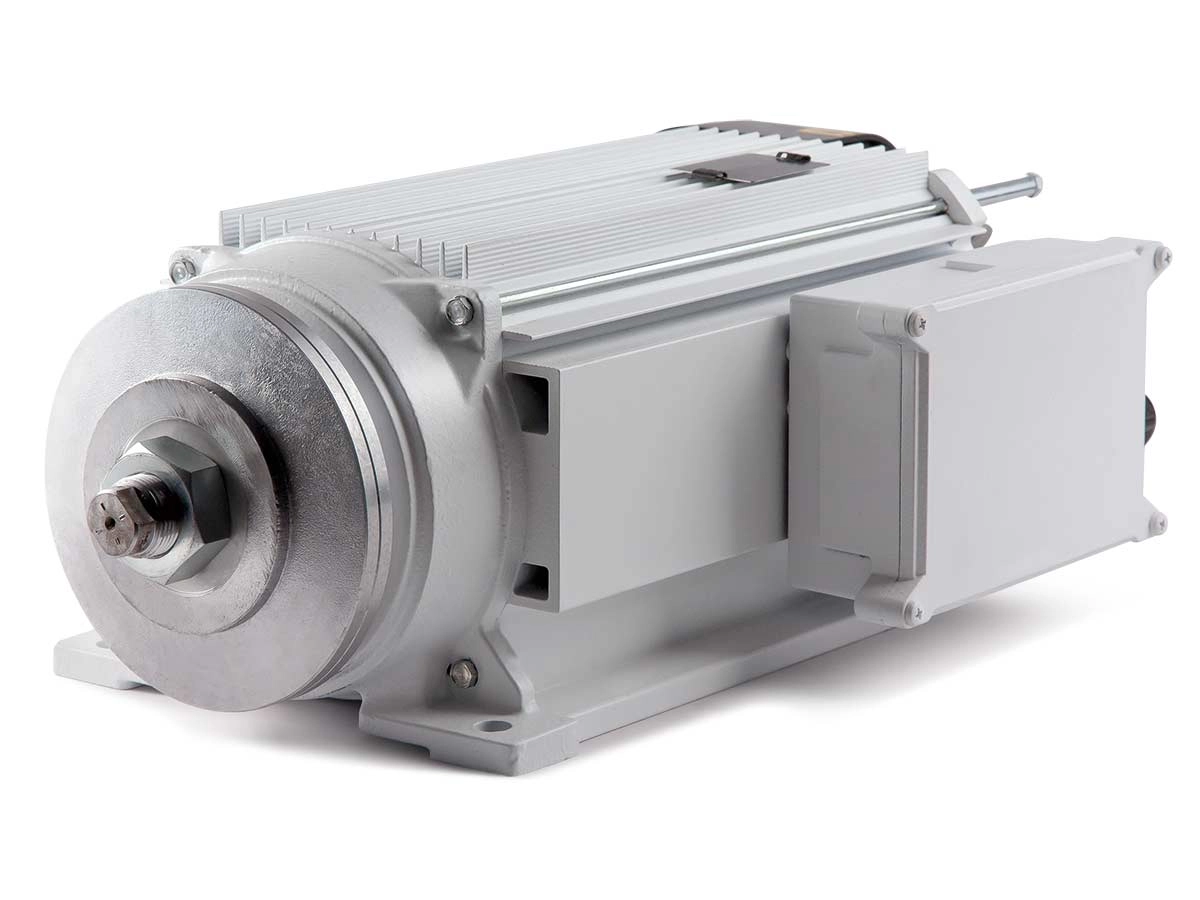

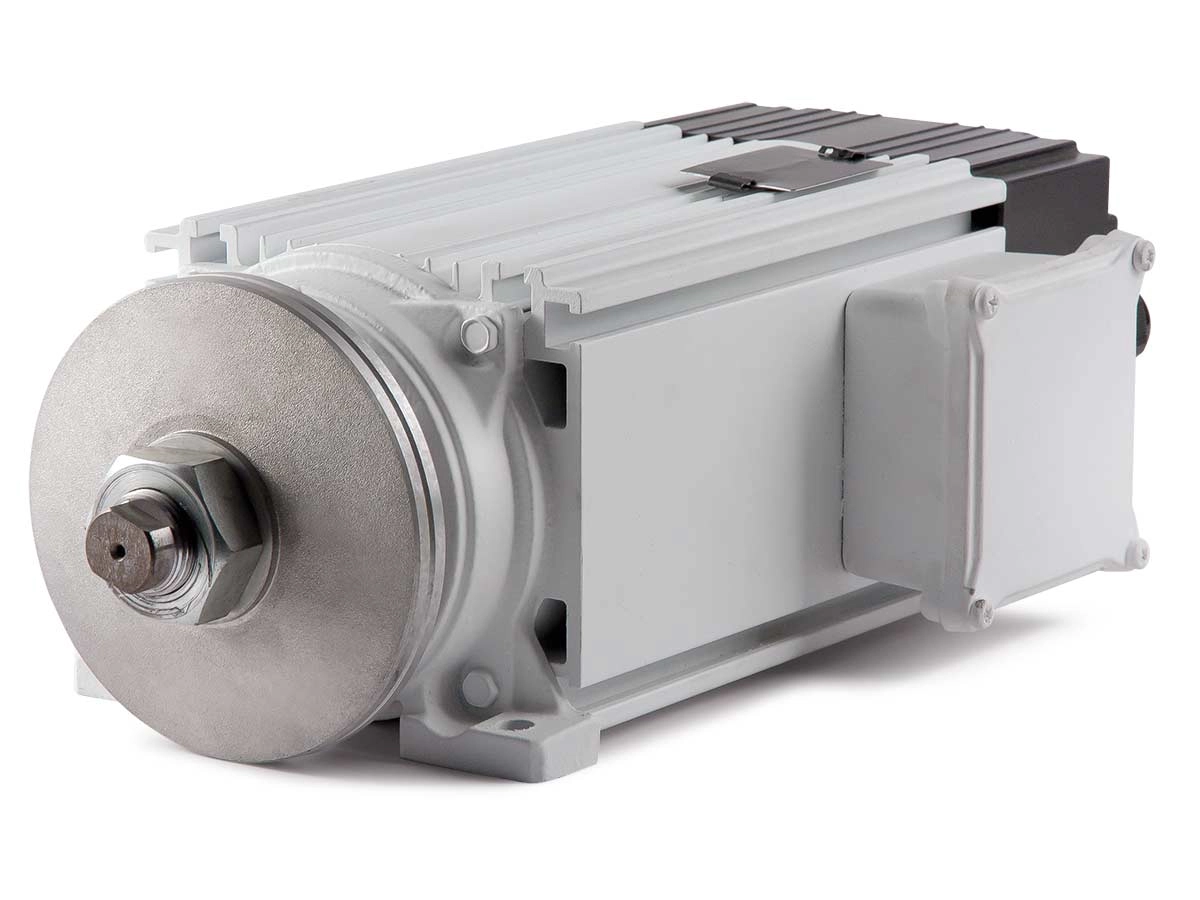

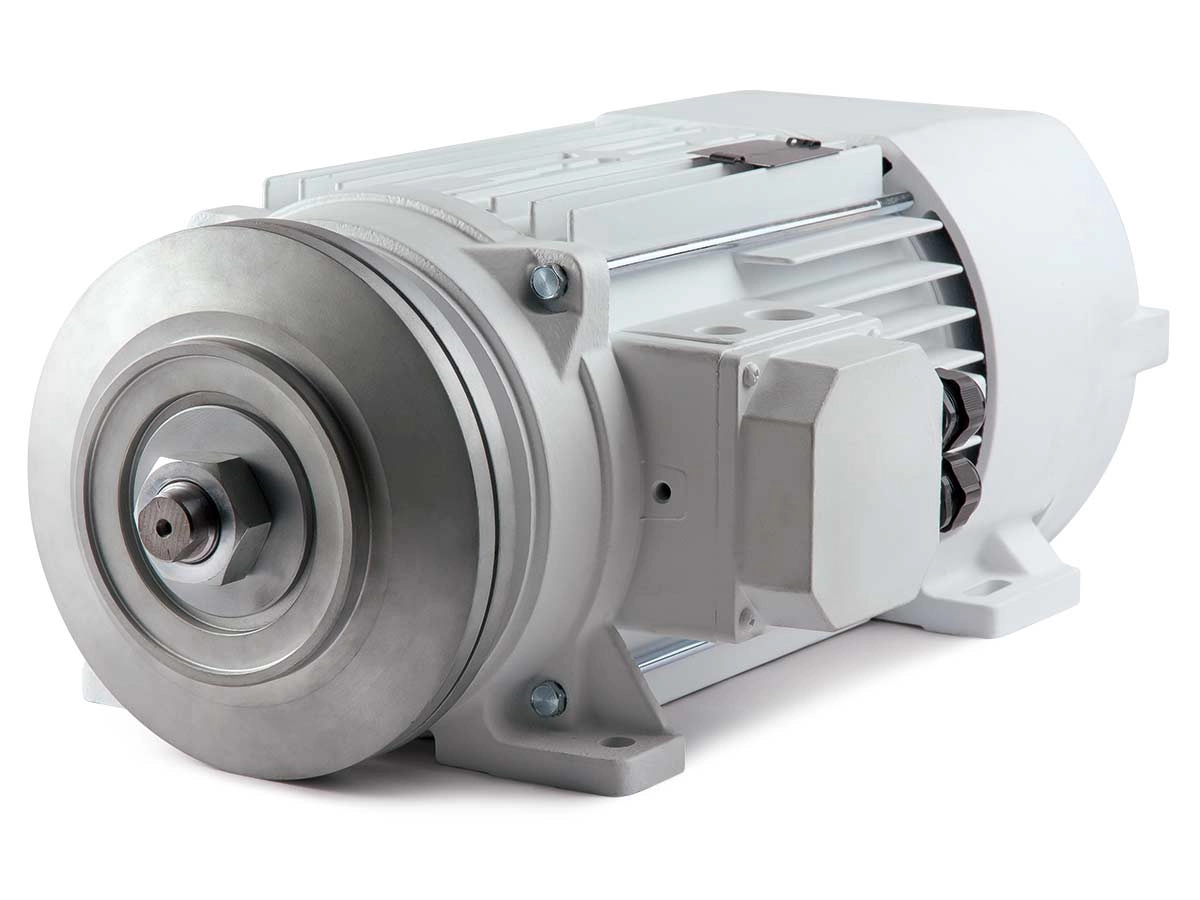

Low Center Asynchronous – 3 Phase – 4 Poles
- Made in Italy
- For industrial cutting machines (marble, stone…)
- Direct-drive coupling to the blade (blade holding disks)
- Deep cut, no need of pulley
- Extremely compact
- IP55 | MR107 IP65 against water and dust (O-ring, V-ring and gaskets between shields and housing)
- Brake and special executions on request
| Model | Frame Size [mm] | kW (S6 60%) 400V 50Hz |
|---|---|---|
| MR71 T1SA/4 | 71 | 1.85 |
| MR71 T1SB/4 | 71 | 2.4 |
| MR80 T1SA/4 | 80 | 3 |
| MR80 T1SB/4 | 80 | 4 |
| MR80 T1MA/4 | 80 | 5 |
| MR93 T1MA/4 | 93 | 6 |
| MR93 T1LA/4 | 93 | 8 |
| MR107 T1MA/4 | 107 | 8.4 |
| MR107 T1MB/4 | 107 | 9.6 |
| MR107 T1MC/4 | 107 | 10.8 |
| MR107 T1MD/4 | 107 | 12 |
Standard clockwise rotation
S6 60%: on an ideal 10-minute cycle, the motor is in operation at full load (rated output) for 6 minutes and with no load for 4 minutes
