CMZ produces and offers a variety of servo drives for motion control applications.

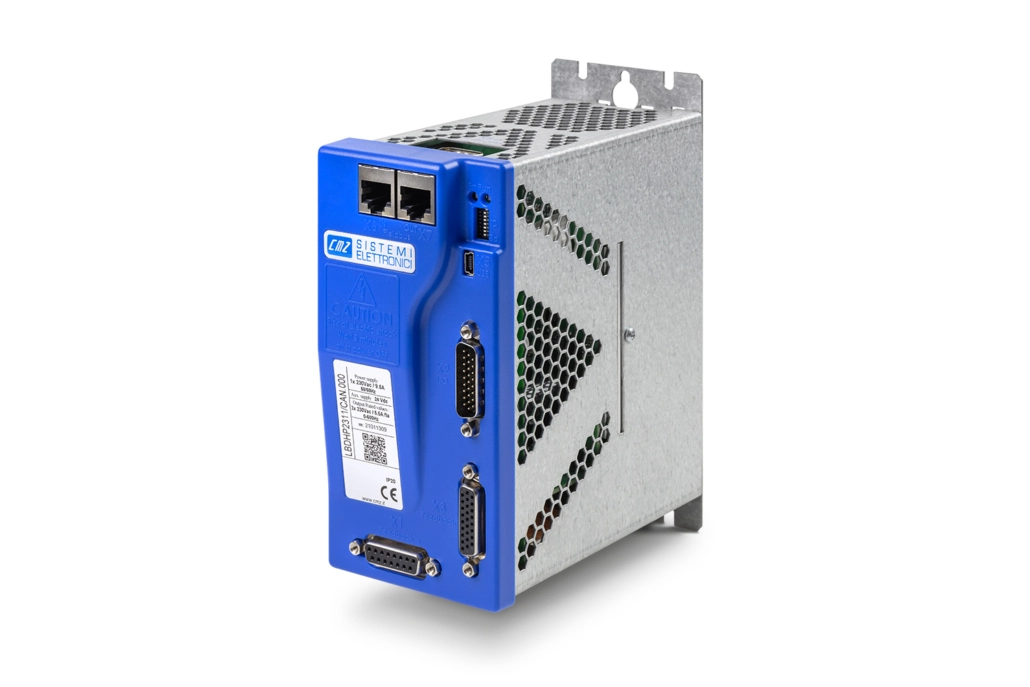

LBD are stand alone brushless drives. They are extremely compact, reliable, high performing.
The range includes LBD/HP400 400 Vac three-phase and LBD/HP230 230 Vac single-phase.
In combination with brushless motors, these are a very suitable solution for applications on automatic machines requiring a strong kinematic performance.
Also available interfacing analog inputs and stepper motors simulation.
LBDs are suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.
Dimensions mm (LBD/HP400 8A – 20A – 45A): H 235 x W 75,4 x D 191. Weight Kg: 2,2
Dimensions mm (LBD/HP400 100A): H 235 x W 80 x D 215,30. Weight Kg: 3,3
Dimensions mm (LBD/HP400 200A): H 295 x W 166,7 x D 218,4. Weight Kg: 8,5
Dimensions mm (LBD/HP230 11A – 17A): H 177,8 x W 75,4 x D 149,1. Weight Kg: 1,5
-
Power Supply
- 230Vac single-phase
- 400 Vac three-phase
Control Supply
- 24Vdc
-
Rated Current
- 230Vac: 5,5A – 8,5 A
- 400Vac: 4 – 10 – 22,5 – 35 – 75 A
Peak Current
- 230Vac: 11A – 17A
- 400Vac: 8 – 20 – 45 – 100 – 200 A
-
Interface
- CANopen DS402 (2 RJ45 connectors), EtherCAT, ± 10V, Pulse/direction
-
Feedback
- Resolver, TTL incremental encoder, TTL incremental encoder+HES, SinCos, SinCos+HES, HIPERFACE absolute encoder single and multiturn, digital HIPERFACE DSL absolute encoder, digital EnDat 2.2 absolute encoder, linear absolute encoder
Encoder Emulation
- Incremental TTL (differential output)
-
2 Analog Inputs
- 12bits +/-10V
1 Analog Output
- 8 bits +/- 2,5V
5 Digital Inputs
- 24Vdc optoisolated: general purpose or configurable as Capture, Index, Limit switch +/-, Enable, STEP/DIR
3 Digital Outputs
- Parametrable 24Vdc max 300mA with dedicated terminal connection for motor brake control (external power device required)
-
Braking Resistor
- 35W included. External connections available
-
STO Function
- 2 channels, SIL3
-
Motor Thermal Sensor
- PTC/NTC
-
EMC Filter
- Choke integrated
-
Certifications
- CE
- UL (except for LBD400 200A model; for models listed in UL file E211056)
