CMZ produces and offers a variety of servo drives for motion control applications.

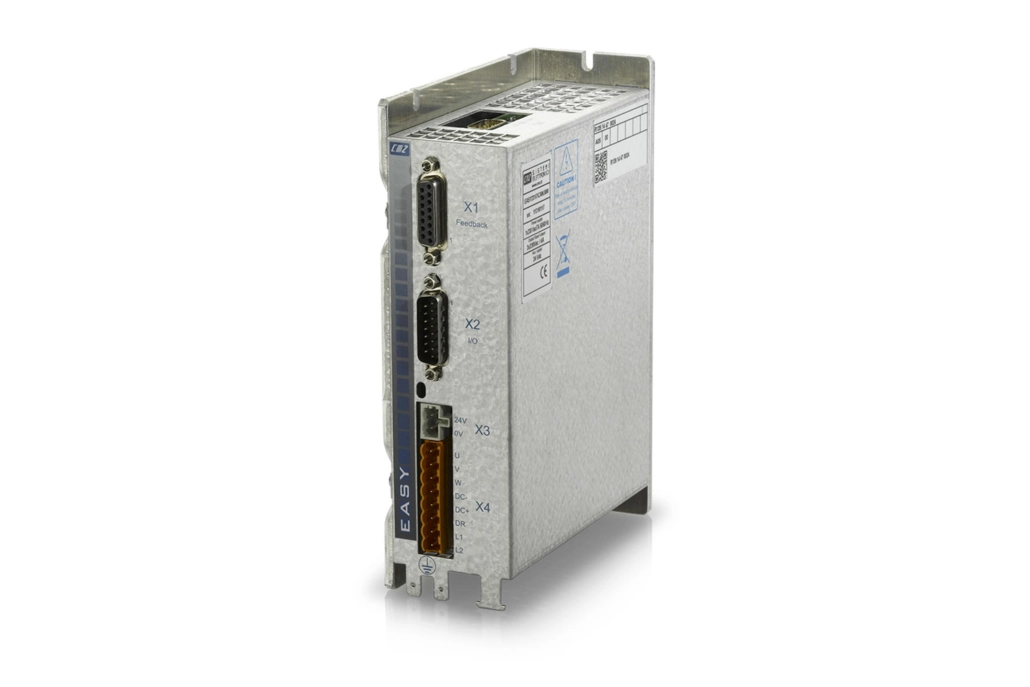

EASY is the cost-effective & optimized solution for stand alone brushless drive.
It is highly compact and performing, available in 110Vac and 230Vac versions.
This drive is easy-to-use for a great ease in management.
Dimensions mm: H 182 x W 54 x D 125. Weight Kg: 1,5
-
Power Supply
- 110-230 Vac single phas
Control Supply
- 24Vdc
-
Rated Current
- 230Vac: 5 A
Peak Current
- 230Vac: 17 A
-
Interface
- CANopen DS402, +/- 10V
-
Feedback
- Resolver, TTL incremental encoder, TTL incremental encoder + HES, Hall effect sensors (HES) only, sensorless
Encoder Emulation
- Incremental TTL (differential output)
-
1 Analog Input
- 12 bits +/-10V
4 Digital Inputs
- 24 Vdc optoisolated: general purpose or configurable as Capture, Index, Limit switch +/-
2 Digital Outputs
- Parametrable 24 Vdc max 500 mA
-
Braking Resistor
- External connections
-
STO Function
- 1 channel, SIL 1
-
Motor Thermal Sensor
- PTC/NTC
-
EMC Filter
- Choke integrated
-
Certifications
- CE
Does EASY fit your project? Try the drawing 3D
