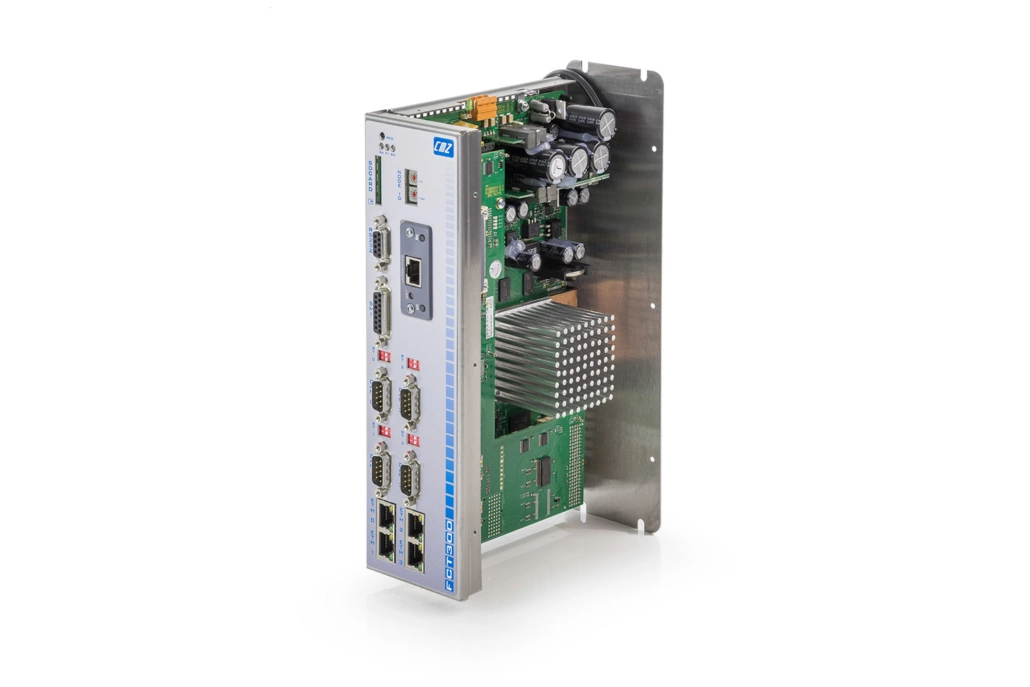

FCT300 is a single frame programmable controller designed and made in Italy by CMZ.
It is a high performing, hard working solution for multi-axis control up to 99 axis.
FCT300 can be managed by IEC61131 development environments:
- CODESYS
- 4CONTROL proprietary environment developed by CMZ equipped with 5 program languages (Structured Test, Instruction List, Function blocks Diagram, Ladder Diagram, Sequential Flow Chart).
FCT300 is equipped with 1 or 3 EtherCAT ports and 2 or 4 CAN ports.
It can also be equipped with PROFIBUS/IO or ETHERNET/IP port.
Dimensions mm: H 250 x W 78 x D 165. Weight Kg: 1,8
-
Processor
- PowerPC
-
Power Supply
- 24Vdc ± 20%
-
Fieldbus
- EtherCAT Master
- CANopen Master
-
Dynamic Ram
- 512 MByte – DDR2 528MHz
-
Booth Flash Eprom
- 8 MByte
Serial Flash Eprom
- 64 MByte
Ferromagnetic Serial Fram
- 128 KByte
-
Communication Ports
- RS232, 2xEthernet 10/100/1000 Mbps, serial RS422-485, synchronous communication (SMI port)
-
Standard Bus On Board
- 2xCANopen ports, 1xEtherCAT
- 2xAuxiliary CANopen, 2xEthernet 10/100 Mbps, Profibus DP slave, DeviceNet slave, EtherNet/IP slave
-
Optional Bus
- 2xAuxiliary CANopen, 2xEthernet 10/100 Mbps, Profibus DP slave, DeviceNet slave, EtherNet/IP slave
-
Mass Memory
- 1xSD card for user data storage
- 1x internal SD card slot
-
Software Features
- Real Time OS: PRECISE MQX
- IEC61131 Environment CODESYS or 4CONTROL
- CMZ Motion libraries
- CMZ Applicatives
- CMZ Configurator
Does FCT300 fit your project? Try the drawing 3D
