In 2022 CMZ extends its range to the full “mechatronic package” by introducing a complete series of top-branded precision planetary gearboxes Made in Italy.
These are developed to serve all kinds of industrial applications, from widely complex to medium and more basic configurations, as well as to ensure:
- Precision
- Performance
- Efficiency
- Reliability & Safety
- Compactness
Precision planetary gearboxes make CMZ motion control solutions reach a superior level of integration: from master controllers, servo drives, servo motors, now including also planetary gearboxes specifically engineered for demanding industrial sectors.
-

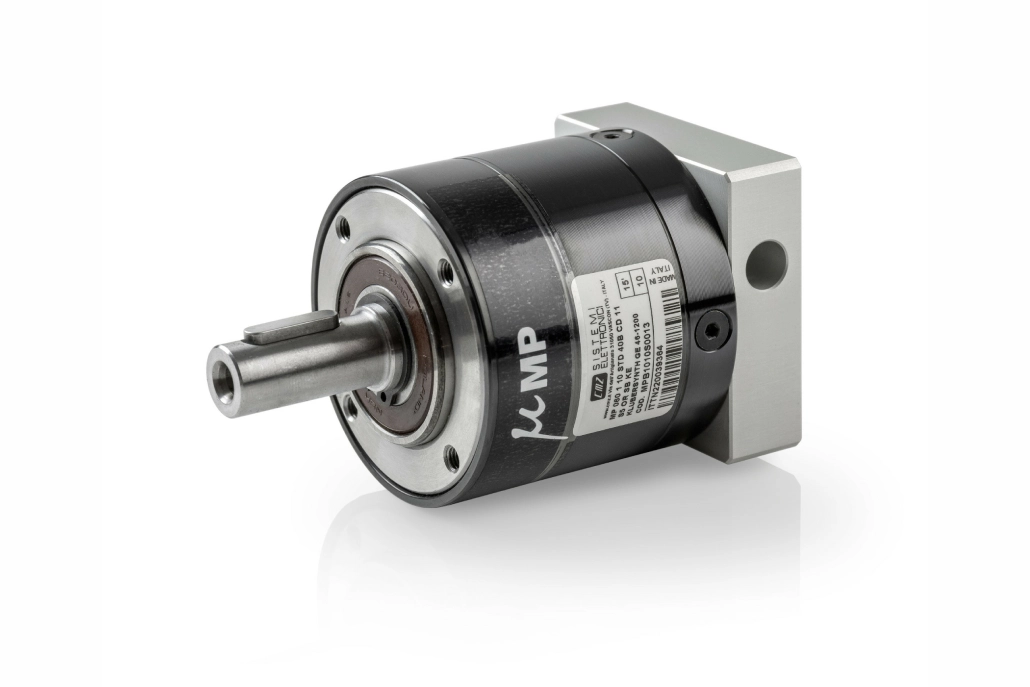

Series TQ – MP
- Maximum power density
- Outstanding position accuracy
- Top class design
- Extreme reliability
- Easy installation
-
Series LC
- Wide flexibility
- High modularity
- Great value-price ratio
Main Table
| Gearbox Model | Nominal Output Torque | Bearing Load | Input Speed | Torsional Stiffness | Backlash | Range of Ratios |
|---|---|---|---|---|---|---|
| TQ | xxxx | xxxx | xxxx | xxxx | xxxxx | xxx |
| MP | xxxxx | xxxx | xxxx | xxx | xx | xxxxx |
| LC | xxx | xxx | xxx | xx | xxx | xxx |
Selection Guide
TQ (High Line)
| Motors | Ratio | Req Tor | Gearbox Model | Torque | Speed | Ratio | Req Tor | Gearbox Model | Torque | Ratio | Req Tor | Gearbox Model | Torque |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MMD65-1.7-3000 | 1/7 | 10 | TQ060 1_7 11 40B1 | 25 | 4000 | 1/10 | 15 | TQ060 1_10 11 40B1 | 20 | 1/20 | 29 | TQ060 2_20 11 40B1 | 30 |
| MMD82-3.2-3000 | 1/7 | 20 | TQ060 1_7 19 80A1 | 25 | 4000 | 1/10 | 28 | TQ070 1_10 19 80A1 | 60 | 1/20 | 56 | TQ070 2_20 19 80A1 | 70 |
| MMD82-4.4-3000 | 1/7 | 25 | TQ060 1_7 19 80A1 | 25 | 4000 | 1/10 | 36 | TQ070 1_10 19 80A1 | 40 | 1/20 | 71 | TQ070 2_20 19 80A1 | 70 |
| MMD102-7.2-3000 | 1/7 | 47 | TQ090 1_7 24 95A2 | 160 | 3000 | 1/10 | 67 | TQ090 1_10 24 95A2 | 110 | 1/20 | 134 | TQ090 2_20 24 95A1 | 180 |
| MMD118 10,2 3000 | 1/7 | 67 | TQ090 1_7 24 110A2 | 160 | 3000 | 1/10 | 95 | TQ090 1_10 24 110A2 | 220 | 1/20 | 190 | TQ090 2_20 24 110A1 | 280 |
| MMD145 16,8 3000 | 1/7 | 112 | TQ130 1_7 28 130A1 | 360 | 2500 | 1/10 | 160 | TQ130 1_10 28 130A1 | 280 | 1/20 | 320 | TQ130 2_20 28 130A1 | 430 |
| MMD145-22.0 3000 | 1/7 | 134 | TQ130 1_7 28 130A1 | 360 | 2500 | 1/10 | 192 | TQ130 1_10 28 130A1 | 280 | 1/20 | 384 | TQ130 2_20 28 130A1 | 430 |
| MMD170 34.0 1600 | 1/7 | 217 | TQ130 1_7 32 130A1 | 360 | 2500 | 1/10 | 310 | TQ160 1_10 32 130A1 | 550 | 1/20 | 620 | TQ160 2_20 32 130A1 | 800 |
| MMD170-45.0 1600 | 1/7 | 294 | TQ130 1_7 32 130A1 | 360 | 2500 | 1/10 | 420 | TQ160 1_10 32 130A1 | 550 | 1/20 | 840 | TQ160 2_20 32 130A1 | 800 |
| MMD170-45.0-1600 V1R | 1/7 | 399 | TQ160 1_7 32 130A1 | 750 | 2500 | 1/10 | 570 | TQ160 1_10 32 130A1 | 550 | 1/20 | 1140 | - | - |
MP (Performance Line)
| Motors | Ratio | Req Tor | Gearbox Model | Torque | Speed | Ratio | Req Tor | Gearbox Model | Torque | Ratio | Req Tor | Gearbox Model | Torque |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MMD65-1.7-3000 | 1/7 | 10 | MP053 1_7 11 40B | 12 | 4000 | 1/10 | 15 | MP060 1_10 11 40B | 18 | 1/20 | 29 | MP060 2_20 11 40B | 30 |
| MMD82-3.2-3000 | 1/7 | 20 | MP080 1_7 19 80A1 | 50 | 4000 | 1/10 | 28 | MP080 1_10 19 80A1 | 40 | 1/20 | 56 | MP080 2_20 19 80A1 | 70 |
| MMD82-4.4-3000 | 1/7 | 25 | MP080 1_7 19 80A1 | 50 | 4000 | 1/10 | 36 | MP080 1_10 19 80A1 | 40 | 1/20 | 71 | MP080 2_20 19 80A1 | 70 |
| MMD102-7.2-3000 | 1/7 | 47 | MP105 1_7 24 95A1 | 140 | 3500 | 1/10 | 67 | MP105 1_10 24 95A1 | 100 | 1/20 | 134 | MP105 2_20 24 95A1 | 170 |
| MMD118 10,2 3000 | 1/7 | 67 | MP105 1_7 24 110A1 | 140 | 3500 | 1/10 | 95 | MP105 1_10 24 110A1 | 100 | 1/20 | 190 | MP105 2_20 24 110A1 | 100 |
| MMD145 16,8 3000 | 1/7 | 112 | MP105 1_7 28 130A1 | 140 | 3500 | 1/10 | 160 | MP130 1_10 28 130A1 | 215 | 1/20 | 320 | MP130 2_20 28 130A1 | 450 |
| MMD145-22.0 3000 | 1/7 | 134 | MP105 1_7 28 130A1 | 140 | 3500 | 1/10 | 192 | MP130 1_10 28 130A1 | 215 | 1/20 | 384 | MP130 2_20 28 130A1 | 450 |
| MMD170 34.0 1600 | 1/7 | 217 | MP130 1_7 32 130A1 | 380 | 3200 | 1/10 | 310 | MP160 1_10 32 130A1 | 350 | 1/20 | 620 | MP160 2_20 32 130A1 | 700 |
| MMD170-45.0 1600 | 1/7 | 294 | MP130 1_7 32 130A1 | 380 | 3200 | 1/10 | 420 | MP190 1_10 32 130A1 | 500 | 1/20 | 840 | MP190 2_20 32 130A1 | 1000 |
LC (Basic Line)
| Motors | Ratio | Req Tor | Gearbox Model | Torque | Speed | Ratio | Req Tor | Gearbox Model | Torque | Ratio | Req Tor | Gearbox Model | Torque |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MMD65-1.7-3000 | 1/7 | 10 | LC070 1_7 11 40B | 25 | 4000 | 1/10 | 15 | LC070 1_10 11 40B | 18 | 1/20 | 29 | LC070 2_20 11 40B | 25 |
| MMD82-3.2-3000 | 1/7 | 20 | LC090 1_7 19 80A1 | 43 | 4000 | 1/10 | 28 | LC090 1_10 19 80A1 | 37 | 1/20 | 56 | LC120 2_20 19 80A1 | 110 |
| MMD82-4.4-3000 | 1/7 | 25 | LC090 1_7 19 80A1 | 43 | 4000 | 1/10 | 36 | LC090 1_10 19 80A1 | 37 | 1/20 | 71 | LC120 2_20 19 80A1 | 110 |
| MMD102-7.2-3000 | 1/7 | 47 | LC120 1_7 24 95A1 | 110 | 3500 | 1/10 | 67 | LC120 1_10 24 95A1 | 95 | 1/20 | 134 | LC155 2_20 24 95A1 | 300 |
| MMD118 10.2 3000 | 1/7 | 60 | LC120 1_7 24 110A1 | 110 | 3500 | 1/10 | 85 | LC120 1_10 24 110A1 | 95 | 1/20 | 170 | LC155 2_20 24 110A1 | 300 |
| MMD145 16.8 3000 | 1/7 | 134 | LC155 1_7 28 130A1 | 300 | 3200 | 1/10 | 192 | LC155 1_10 28 130A1 | 230 | 1/20 | 384 | - | - |
| MMD145-22.0 3000 | 1/7 | 217 | LC155 1_7 28 130A1 | 300 | 3200 | 1/10 | 310 | - | - | 1/20 | 620 | - | - |
| MMD170 34.0 1600 | 1/7 | 294 | LC155 1_7 28 130A1 | 300 | 3200 | 1/10 | 420 | - | - | 1/20 | 840 | - | - |
