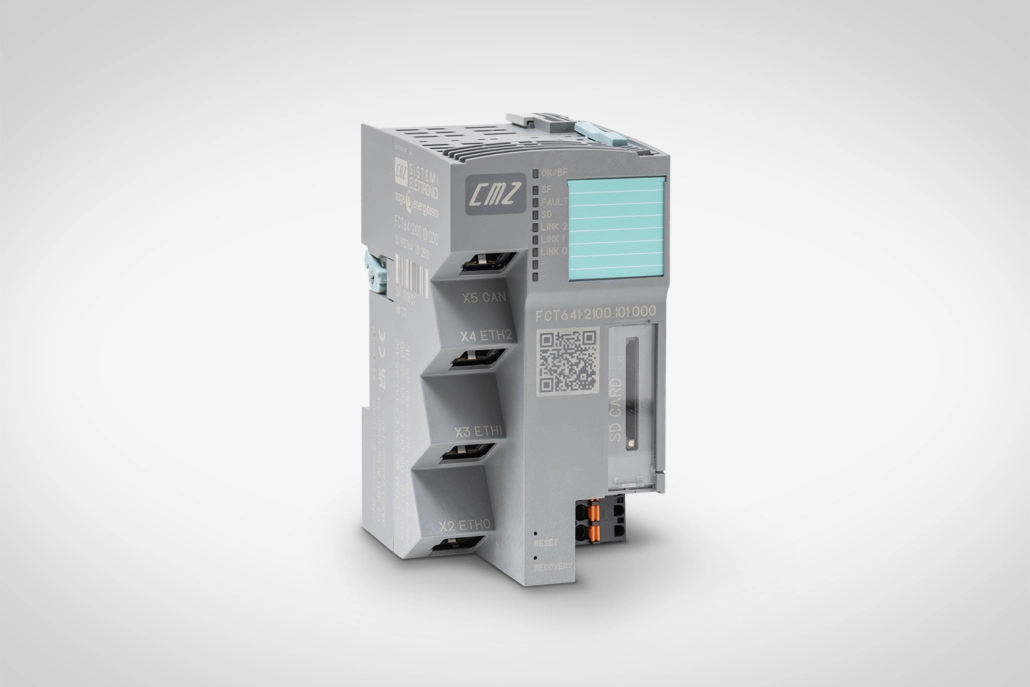

The new controller FCT641 represents the evolution of FCT640 series, making the most of all the features of CODESYS world, by innovating the control of industrial automation systems at the highest levels of performance.
Based on LINUX OS, FCT641 controller is designed for installation of CODESYS Service Packs with access to all updates and functions released by CODESYS.
LINUX OS also allows a secure file system and the management of Security certificates.
FCT641 can be supplied with following Single Licenses by CODESYS installed directly at order placement:

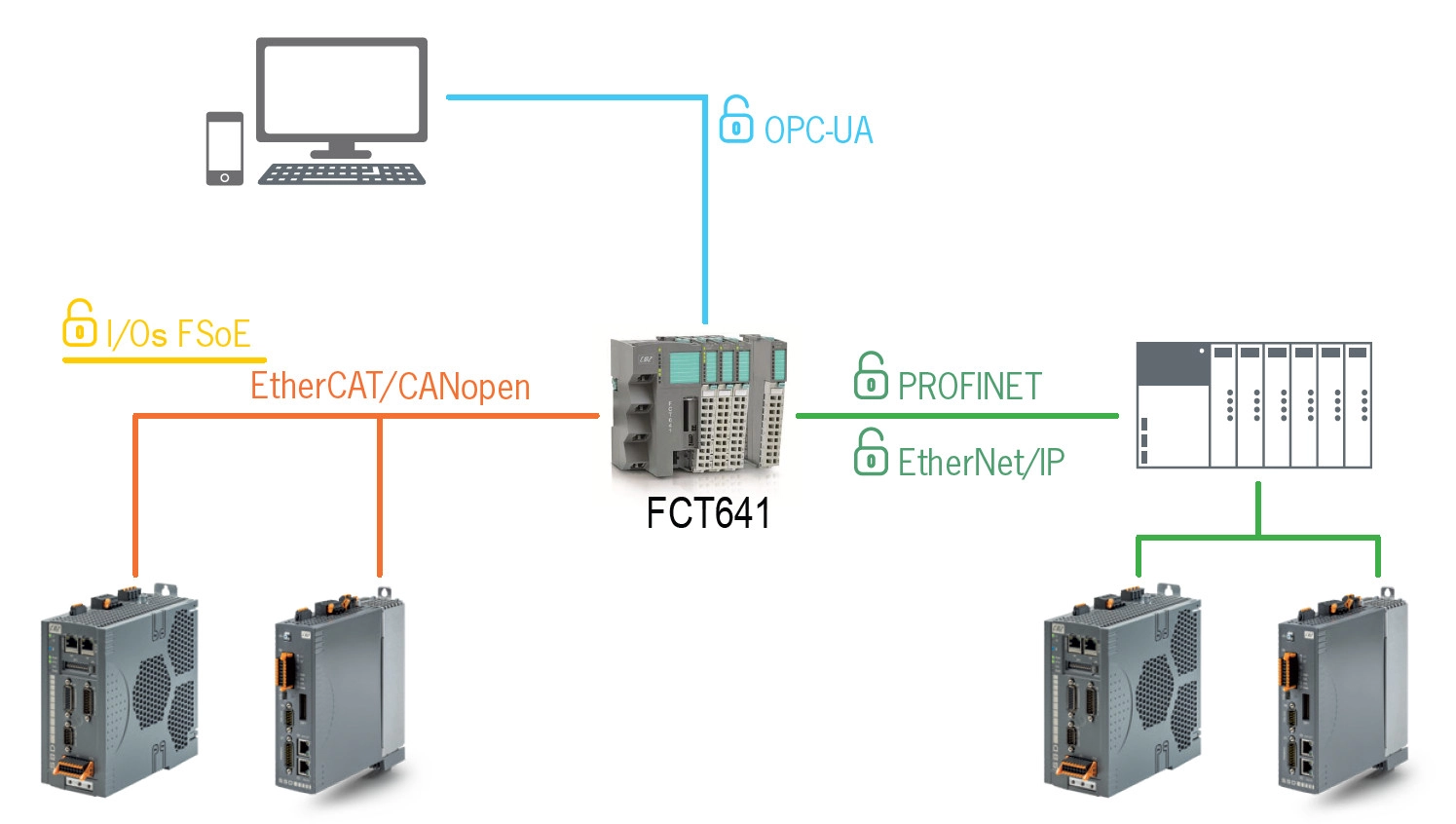

Through FCT641 controller, connectivity expands for the complete control of any type of automation.
Dimensions mm: H 110 x W 57 x D 73. Weight gr: 300
-
Processor
- CPU RISC dual core 64 bit
- 1.0 GHz three level cache
-
Power Supply
- 24V DC
-
Memory Capability
- 1GB Nand flash for storage
- 512 MB DRAM high bandwidth 64 bit 1666 MT/s
- 32 KB Ferromagnetic RAM (non-volatile PLC data)
- SD-Card
-
Communication Ports
- 1xRJ45 Ethernet 10/100 MBit TCP/IP (Debug)
- 2xRJ45 Ethernet 10/100 MBit (Fieldbus)
- 1xRJ45 CAN-Bus (CANopen Master)
-

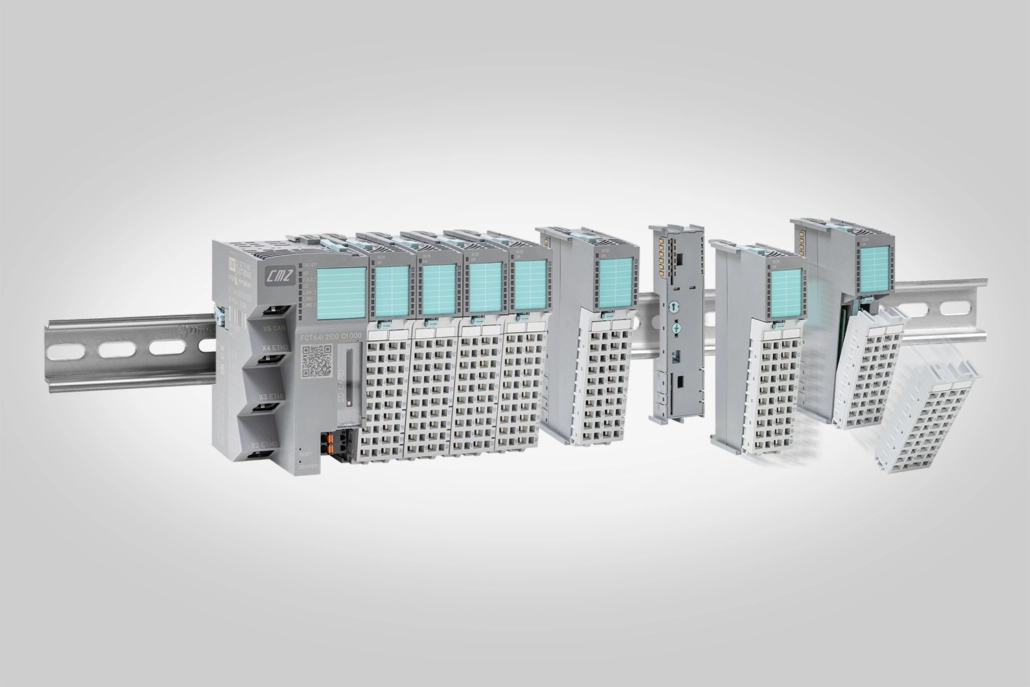

Integrated I/Os
- 64 modules, each with a max of 16-bit IO (1024 digital) or 8 channel analog (512 analog)
- Big variety of modules available
-
Fieldbus
- EtherCAT
- CANopen
-
Network Connectivity
- OPC-UA
- Modbus TCP
- Communications based on UDP-TCP
- WEB Server
- PLCHandler
-
General Features
- 9 LEDs
- RTC with CR2032 Battery
- Reset-Button / Restore-Button
- 0° / 40°C ambient temp.
- Fanless
-
Software Features
- IEC61131 environment CODESYS
- CMZ motion libraries
- CMZ applicatives
Does FCT641 fit your project? Try the drawing 3D
