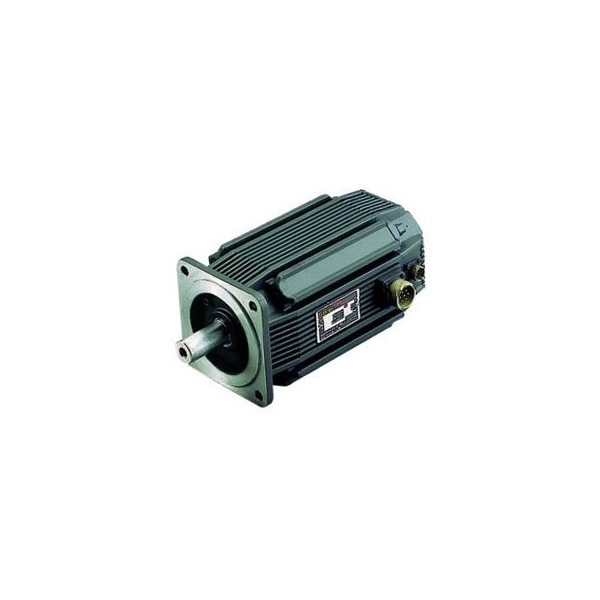

Synchronous Servo Motors
- Feedback: resolver, encoder, SinCos©
- Holding brake available
- IP65
- Flange B5 / B6 / B9 / B14
- 8 motor poles (MB/MH/ME 56 and 70: 4 motor poles)
- Alternative rotor inertias
- Neodymium magnets
- Applications requiring rapid accelerations and delays (packing machines, presses, assembly machines, ...)
| Type | Flange size [mm] | Static Torque [Nm] | Speed [rpm] |
|---|---|---|---|
| 56 | 56 | 0.2/0.4/0.6 | 2500...10000 |
| 70 | 70 | 0.5/1/1.5/2/2.5 | 2000...7500 |
| 105 | 105/116/96 | 2/4/6/8 | 1600...6000 |
| 145 | 145 | 4/8/15/22/28 | 550...4500 |
| 205 | 205 | 15/28/50/70/90 | 550...3000 |
| 265 | 265 | 75/145/205/270 | 1000...3000 |
