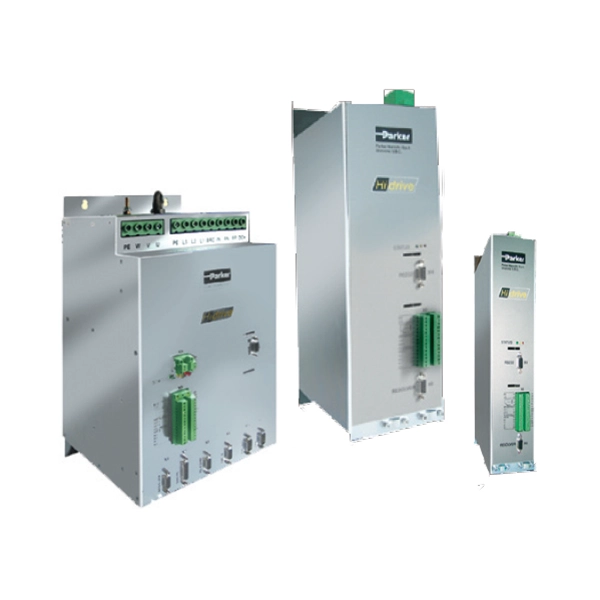

Drive for Brushless and Asynchronous Motors
- High performance drive
- Brushless and asynchronous motors control
- From 2 to 150 Arms continuous current
- Resolver, incremental/less wire encoder, SinCos+EnDat and SinCos+Hiperface absolute encoderfeedback
- Positioner with speed trapezoidal profile
- Digital lack with variable ratio and phase correction
- Electronic cams
- Built-in PLC withladder and instruction list programming language (256 steps)
- On-board full IEC 61131 programming environment
- CanBus standard (CanOpen DS402 or SBCCAN)
- Expansion boards availablefor Profibus-DP and I/O expansion
| Device | Continuous Current | Peak Current | Input Power |
|---|---|---|---|
| HiD2 | 2 A RMS | 4 A RMS | 3 * 200...480 VAC |
| HiD5 | 5 A RMS | 10 A RMS | 3 * 200...480 VAC |
| HiD8 | 8 A RMS | 16 A RMS | 3 * 200...480 VAC |
| HiD16 | 16 A RMS | 32 A RMS | 3 * 200...480 VAC |
| HiD25 | 25 A RMS | 50 A RMS | 3 * 200...480 VAC |
| HiD35 | 35 A RMS | 70 A RMS | 3 * 200...480 VAC |
| HiD45 | 45 A RMS | 90 A RMS | 3 * 200...480 VAC |
| HiD75 | 75 A RMS | 150 A RMS | 3 * 200...480 VAC |
| HiD100 | 100 A RMS | 200 A RMS | 3 * 200...480 VAC |
| HiD150 | 150 A RMS | 300 A RMS | 3 * 200...480 VAC |
High Performance CN Axis Board
- This board is an axis controller which can be integrated into the Hi-Drive in order to increase the servo drive performance.
- The board can generate trajectories of "n" interpolated axes with a low dissipated power, piloting the slave axis via CANopen DSP402.
- Managing resident I/O and field bus remote I/O the CN board can be linked to the plant network or to any operator panels via Ethernet TCP/IP. The board is equipped with an embedded OPC server.
- Equipped with a multitasking real time operating system and can be programmed using standard programming and motion control languages.
