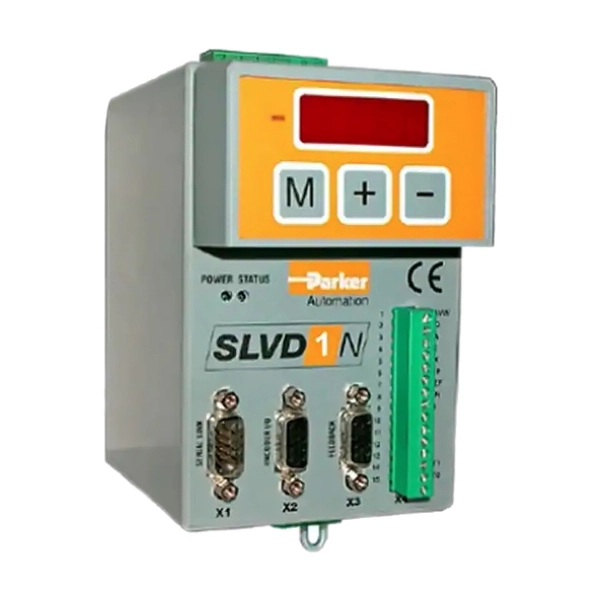

Compact Digital Servo Drive
- From 1.25 A to 17 A continuous current
- 230 VAC, 1 and 3 phase operation
- Internal braking resistor
- Configurable feedback
- Current, torque and speed control
- Positioner
- Electronic shaft
- Electronic cam
- Internal PLC - programming according to IEC61131-3 (option)
- Standard interface: RS232/485, SBCCAN
- Optional interface: EtherCAT, CANopen (DS301, DS402)
- Internal EMC filter for three phase power supply
- International standards: CE, UL, cUL
| Device | Continuous Current | Peak Current | Input Power |
|---|---|---|---|
| SLVD1N | 1.25 A RMS | 2.5 A RMS | 1/3 * 230VAC |
| SLVD2N | 2.5 A RMS | 5 A RMS | 1/3 * 230VAC |
| SLVD5N | 5 A RMS | 10 A RMS | 1/3 * 230VAC |
| SLVD7N | 7 A RMS | 14 A RMS | 1/3 * 230VAC |
| SLVD10N | 10 A RMS | 20 A RMS | 1/3 * 230VAC |
| SLVD15N | 15 A RMS | 30 A RMS | 1/3 * 230VAC |
| SLVD17N | 17 A RMS | 34 A RMS | 1/3 * 230VAC |
