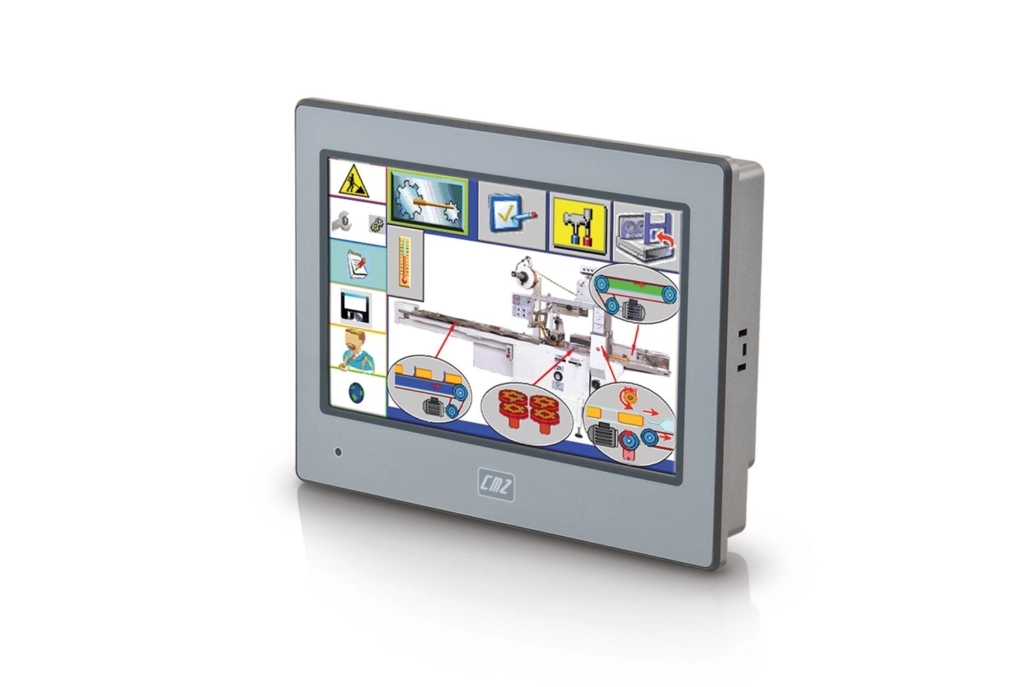

Operator Panels For Industry 4.0 PT2

HMI operator panels of PT2 series are full part of CMZ range.

They have optimized features upon Industry 4.0, IoT (Internet of Things) and IIoT (Industrial Internet of Things).

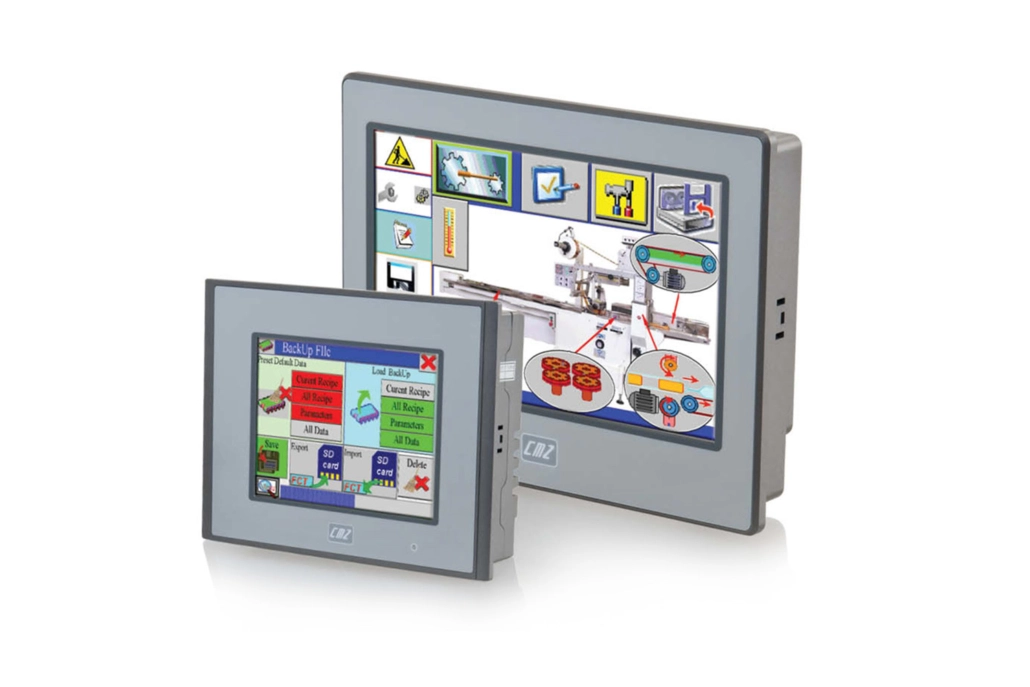

PT2 series is made of 7 touch screen terminals models from smallest to biggest, from 4,3” up to 15”. IP66.

They can be connected with CMZ controllers and the main controllers on the market as well, thanks to standard or dedicated protocols.

PT2 panels are usable with PM PANEL MASTER DESIGNER development environment (V2.1.9.46 or later versions) very simple and intuitive in programming and realizing HMI’s functionalities and GUI (Graphical User Interface).

On request we can provide PANEL EXPRESS software based on PC platform.

Improved screen resolution. More details in the colors.

Working memory extended from 32MB to 64MB even on the smallest models.

USB host from 1 to 2.0 (maximum speed for application downloading).

Battery supplied as standard with 5-year life.

5 COM communication interfaces (4 only on the smallest model PT2043 4.3”).
