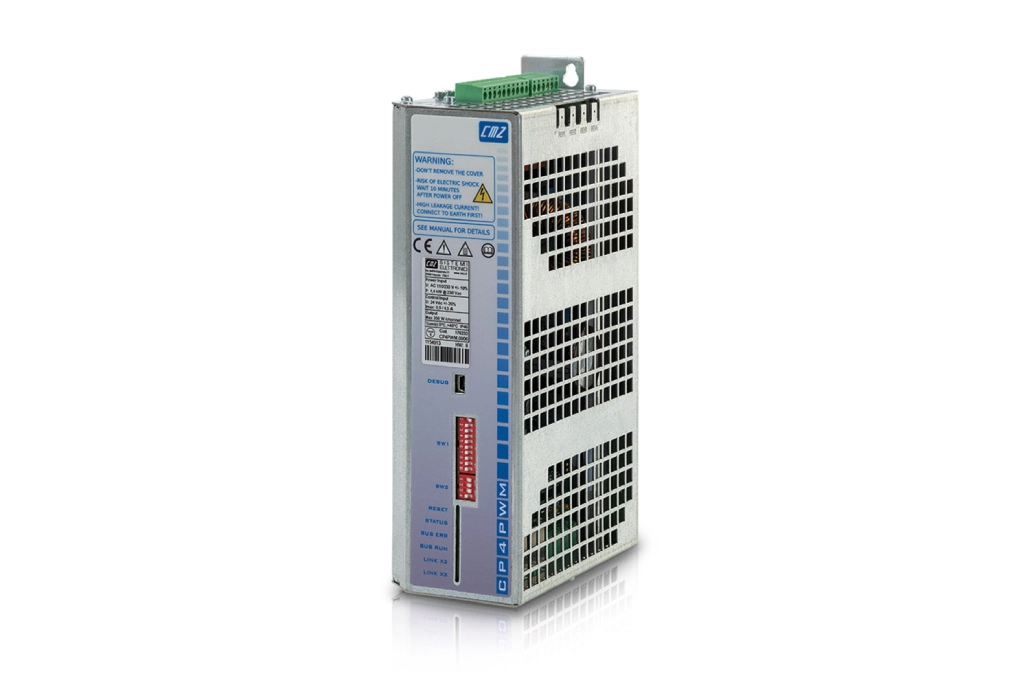

CP4PWM is the solution for the control and management of vibrating feeders with independent control from frequency and main voltage.
This peripheral can manage up to 4 feeders.
Load setting through PWM technology.
Dimensions mm: H 257 x W 72 x D 138. Weight Kg: 1,7
-
Adjustment During Installation
- Fast self-search of resonance frequency
- Automatic calculation of impressed voltage
-
Motion Dynamic Regulation
- Boost start for product release
- Soft start for silent start
- Fast stop of the vibrator for reduction of product queue
-
Fieldbus
- CANopen (DS401)
- EtherCAT
- Modbus (soon available)
-
Programmability
- Stand alone with IEC61131 programmability (soon available)
-
PWM Clock Frequency
- 30 Hz up to 70 Hz
-
Supply Voltage
- 110/230VAC 50/60Hz
- Inrush current limitation
- Maximum output power 600W/channel
- Maximum output power of the system 1.4kW @ 230Vac, 700 W @ 110Vac
-
I/O
- 8 digital pnp input
- 8 digital pnp output 24V 500mA
- 2 analog output 4-20mA
- 4 analog input 4-20mA
-
More Features
- Fanless
- Electronically protected against overheating
- Configuration via SD Setup through USB
