Stand Alone SBD

CMZ produces and offers a variety of servo drives for motion control applications.

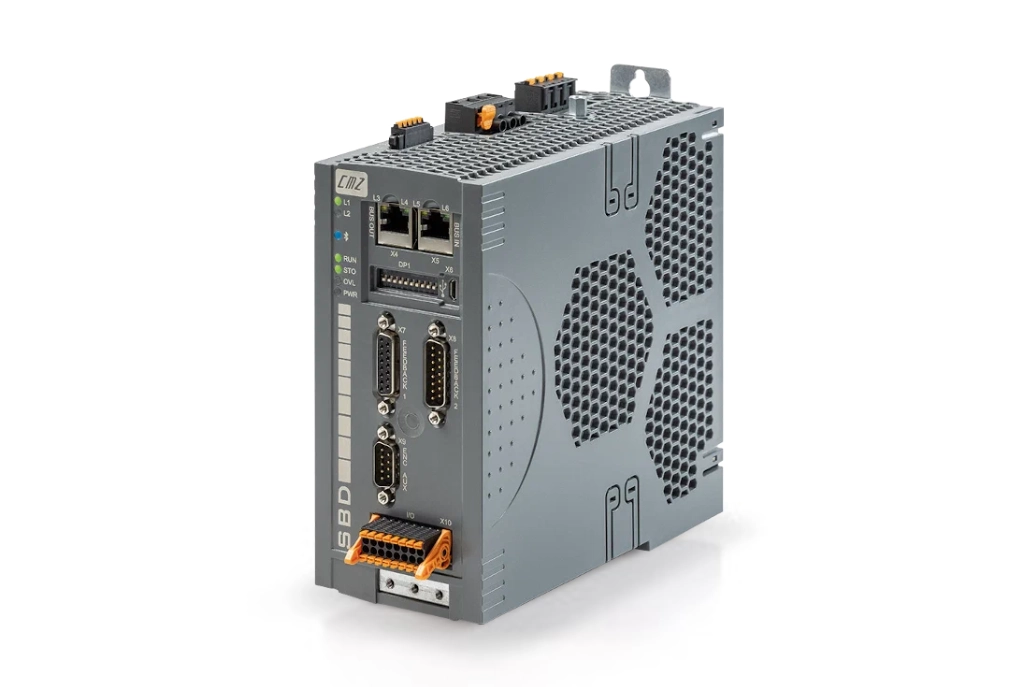

SBD is the new CMZ brushless standalone drive, featuring Italian best technology for versatility and connectivity.

Smart Drive with integrated PLC

Programmability IEC 61131-3 with 2 possibilities of use:

• SBD in PLC version allows the machine decentralization giving control functions directly on-board, by integrating the controller
• Combined with RP064IO expansion peripheral and a HMI panel, SBD drive in PLC version allows to independently manage the full automation of the machine, by determining no need for controller (in some types of applications).

SBD is suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.

Range from 5 A to 20 A (230 Vac and 400 Vac)

All built-in: filters, braking resistors, power supply, grid protection

230V or 400V in one case

Cost-effective solution

UL for SBD-M (with integrated functions for protection of users and systems)

Developed and Made in Italy.

Dimensions size M (mm): H 178,3 x W 83,6 x L 189,2 Weight 1,8 Kg

Dimensions size L (mm): H 270 x W 105 x L 232 Weight 4,8 Kg
