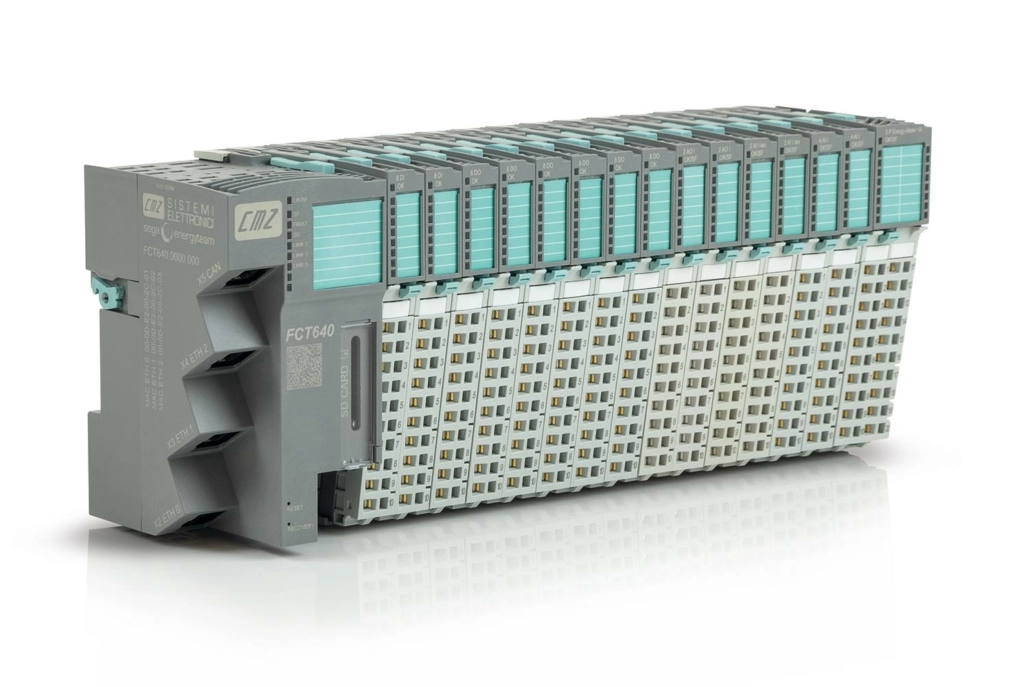

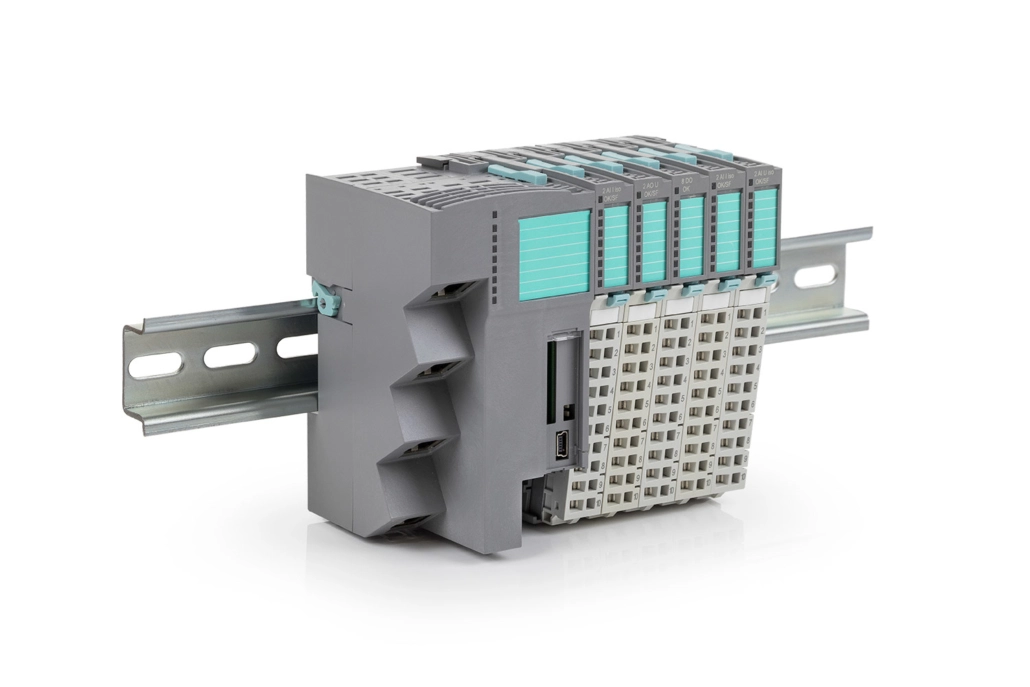

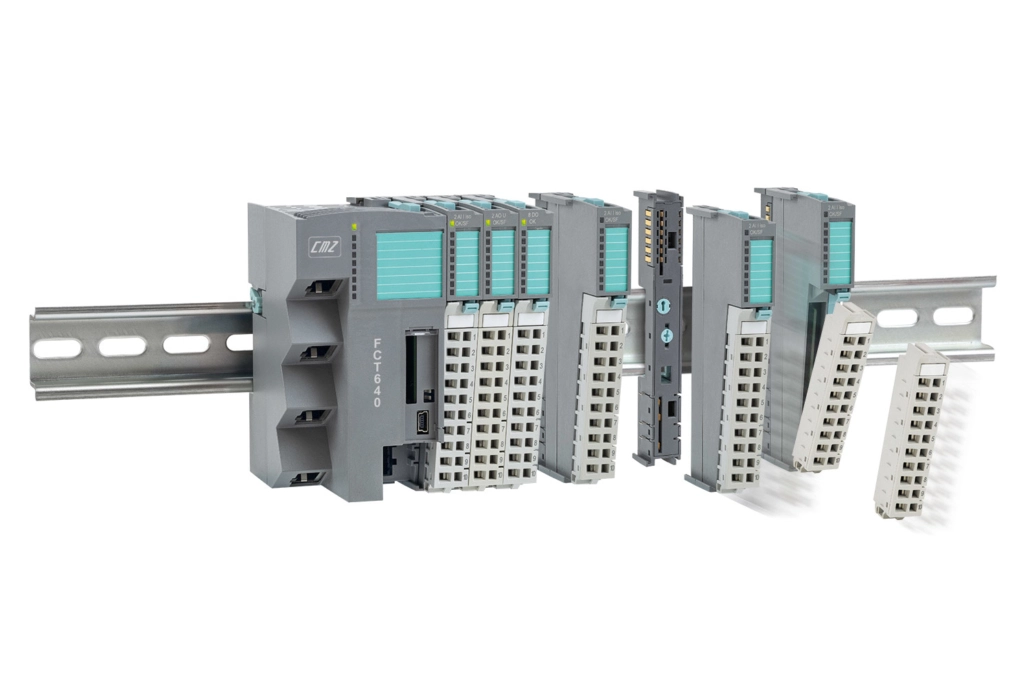

Modular FCT640

For industrial motion control, CMZ provides FCT640 programmable plc controller: a modular, compact and high performing system based on CODESYS 3.5 with integrated I/Os.

Its technological soul is fully conceived and developed by CMZ.

FCT640 integrates motion control solutions into a single and compact technological device. The controller is equipped with all the field buses used in industry (EtherCAT, CANopen, ModbusTCP) and integrated modular I/O units, both digital and analog.

The choice of the OPC UA communication protocol is a coming soon implementation, to allow the system to be networked to the outside efficiently and safely by ensuring full connectivity with other devices as a relevant feature for Industry 4.0. interoperability.

The power of the processor, the presence of Ethernet and CAN ports and serial ports, alongside with a total memory capacity of over 1 GB plus an SD-Card, complete FCT640 technological equipment.

Dimensions mm: H 110 x W 57 x D 73. Weight gr: 300

Processor
- CPU RISC dual core 64 bit
- 1.0 GHz three level cache
Power Supply
- 24V DC
Memory Capability
- 1GB Nand flash for storage
- 512 MB DRAM high bandwidth 64 bit 1666 MT/s
- 32 KB Ferromagnetic RAM (non-volatile PLC data)
- SD-Card
Communication Ports
- 1xRJ45 Ethernet 10/100 MBit TCP/IP (Debug)
- 2xRJ45 Ethernet 10/100 MBit (Fieldbus)
- 1xRJ45 CAN-Bus (CANopen Master)
Integrated I/Os
- 64 modules, each with a max of 16-bit IO (1024 digital) or 8 channel analog (512 analog)
- Big variety of modules available
Fieldbus
- EtherCAT
- CANopen
Network Connectivity
- Modbus TCP
- Communications based on UDP-TCP
- WEB Server
- PLCHandler
General Features
- 9 LEDs
- RTC with CR2032 Battery
- Reset-Button / Restore-Button
- 0° / 40°C ambient temp.
- Fanless
Software Features
- Real Time OS: PRECISE MQX
- IEC61131 Environment CODESYS
- CMZ motion libraries
- CMZ applicatives
