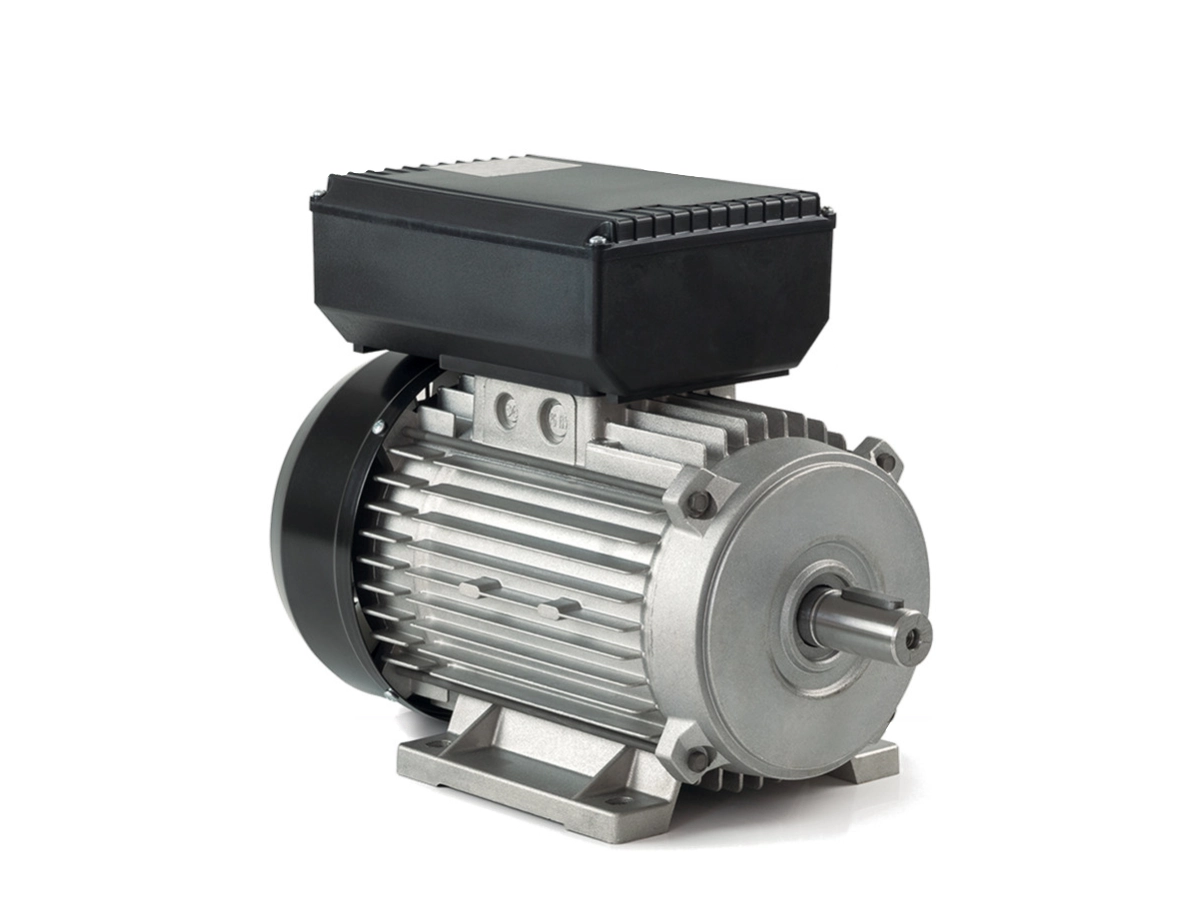

IEC Standard Induction Low Voltage AC – 1 Phase – 2 Poles – IE2
- Made in Italy
- IE2 HIGH EFFICIENCY
- Efficiency testing method according to IEC 60034-2-1
- IE2 efficiency class according to IEC 60034-30
- Outputs up to 3 kW / 50 Hz
- IP55
- Special executions on request
| Model | Switch Type | IEC Frame Size [mm] | kW (S1) – F Class 230V 50 Hz |
Speed [rpm] | Efficiency [%] |
|---|---|---|---|---|---|
| MM2 63MA/2 | no switch | 63M | 0.18 | 2800 | 60.4 |
| MM2 63MB/2 | no switch | 63M | 0.25 | 2830 | 64.8 |
| MME2 71MA/2 | electronic switch | 71M | 0.37 | 2810 | 69.5 |
| MME2 71MC/2 | electronic switch | 71M | 0.55 | 2840 | 74.1 |
| MME2 71MD/2 | electronic switch | 71M | 0.75 | 2840 | 77.4 |
| MMD2 80MC/2 | centrifugal switch | 80M | 0.75 | 2910 | 77.4 |
| MMD2 80MD/2 | centrifugal switch | 80M | 1.1 | 2860 | 79.6 |
| MMD2 90LA/2 | centrifugal switch | 90L | 1.5 | 2880 | 81.3 |
| MMD2 100LA/2 | centrifugal switch | 100L | 1.8 | 2870 | 82.2 |
| MMD2 100LB/2 | centrifugal switch | 100L | 2.2 | 2890 | 83.2 |
| MMD2 112MB/2 | centrifugal switch | 112M | 3 | 2910 | 84.6 |
4 pole motors IE2 are available on request.
For IE2 60Hz motors please contact us.
Standard couplings: B3 feet, B5 flange, B14 flange, B3/B5 feet & flange, B3/B14 feet & flange
