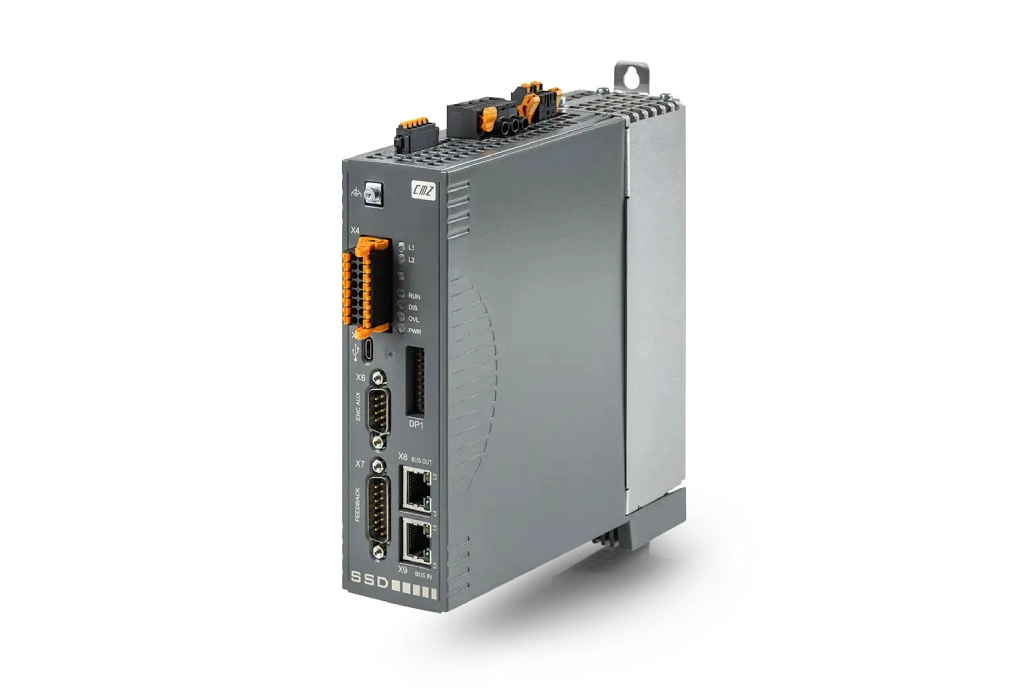

SSD is the new standalone stepper drive developed by CMZ with stepless technology.
Launched in 2024, it’s compact and highly performing: the perfect solution for stepper motors.
Production is Made in Italy in our factory.
Smart Drive with integrated PLC
Programmability IEC 61131-3 with 2 possibilities of use:
- SSD in PLC version allows the machine decentralization giving control functions directly on-board, by integrating the controller.
- Combined with RP064IO expansion peripheral and a HMI panel, SSD drive in PLC version allows to independently manage the full automation of the machine, by determining no need for controller (in some types of applications).
SSD is suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.
- 5 A (230 Vac)
- All built-in: filters, braking resistors, power supply, grid protection
- Compact and cost-effective solution
- Developed and Made in Italy.
Dimensions (mm): H 176 x W 56 x L 190 Weight 1,3 Kg
-
Features
- Efficient motor control
- No step loss
- High torque density
- Low noise and vibration
- Low power consumption
- Low torque ripple
-
Fieldbus
- EtherCAT
- CANopen
- PROFINET
-
Power Supply
- Without external contactor
-
I/O Modules
- Integrated 7 DI – 3 DO – 1 AI – 1 AO
-
Feedback
- Incremental encoder
-
Applications
- Multi-axis application based on CODESYS controller and SSD CODESYS driver or
Standalone application without controller (SMART DRIVE), based on integrated programmability IEC61131 (ST language)
- Multi-axis application based on CODESYS controller and SSD CODESYS driver or
-
Configuration & Tuning
- Advanced Configuration & Tuning functionalities on SDSetUp
Does SSD fit your project? Try the drawing 3D
