Stepless is the technology invented and developed by CMZ for low speed applications.
Through the closed loop control, a stepper synchronous motor can be controlled with modulated current by:
- eliminating any problem due to the step loss
- reducing the motor temperature
Compared to the brushless solution, on the same motor size the Stepless technology provides higher torque at low speed. This makes it most suitable for a wide variety of low speed applications.

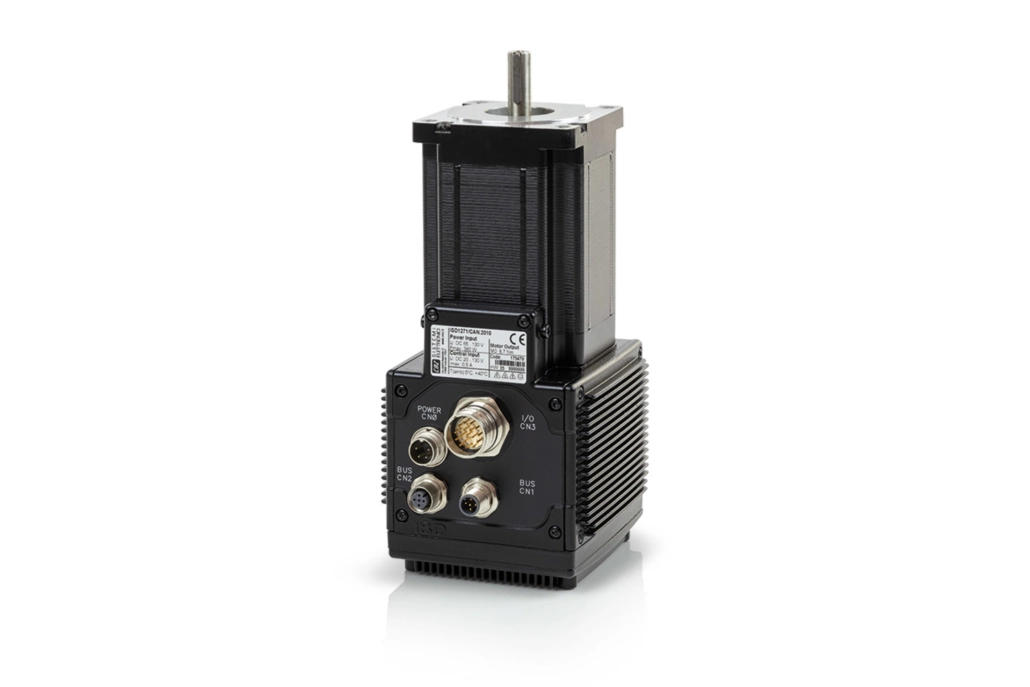

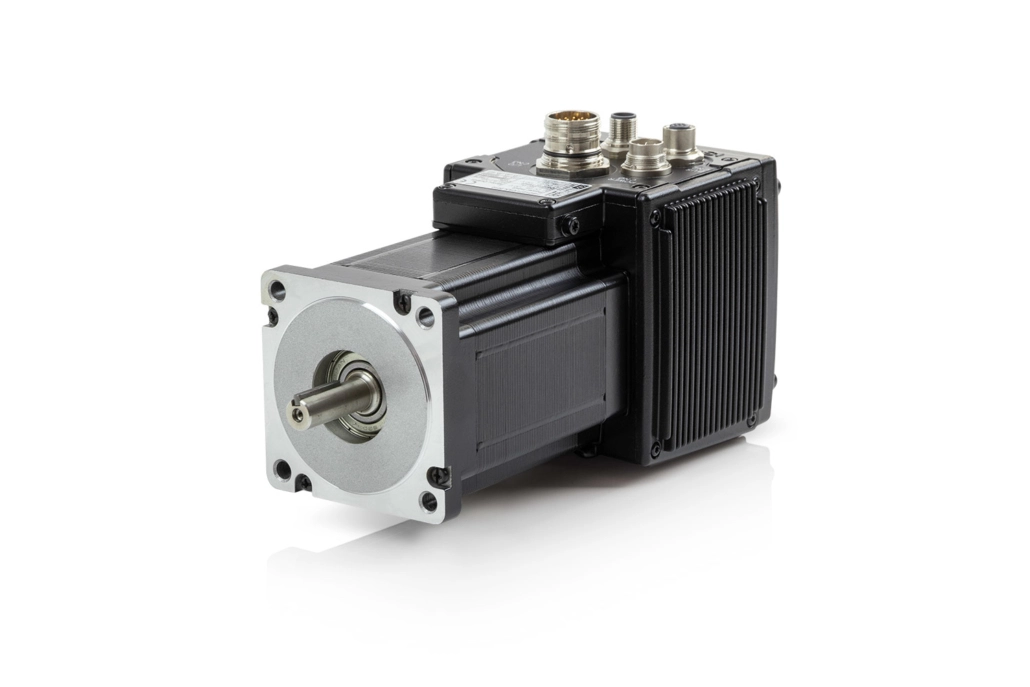

ISD is our stepless integrated servo drive for decentralized architecture, featuring:
- internal programmability
- CANOpen, PROFIBUS, MODBUS RTU protocols
- usability with all master controllers using CODESYS.
It is available in 3 different models from 4,6 Nm to 12 Nm.
| Model | Holding Torque (Nm) | Flange (mm) | Total Length (mm) |
|---|---|---|---|
| ISD 1281 | 4,6 | 86 | 186 |
| ISD 1271 | 8,5 | 86 | 224 |
| ISD 1261 | 12 | 86 | 262 |
-
Power Supply
- 65-130 Vdc [Nominal 120 Vdc]
Control Supply
- 20-130 Vdc [Nominal 120 Vdc]
-
Current
- Maximum current internally set (depending on model)
-
Feedback
- Incremental encoder
- Multiturn absolute encoder
Encoder Output
- Incremental encoder output (only APD version)
-
Digital Input
- 3 x optoisolated PNP digital inputs
- 2 x differential (+24V or +5V/Line driver) digital inputs (used as general purpose, encoder input or step-dir input)
-
Analog Input
- 1 x analogue IN +/-10V
Digital Output
- 2 x optoisolated PNP digital outputs 24Vdc max 200mA (external 24Vdc required)
-
Digital Bidirectional I/O
- 2 x bidirectional optoisolated PNP digital IN/OUT
-
Interface
- Profibus-DP slave
- CANopen
- RS232/485 (ModBus)
-
Versions
- Profibus-DP
- CANopen (DS402)
- ModBus RS485
- Step/dir, ±10V with encoder output
-
Functional Features
- Integrated movement features: device profile DS402, interpolated mode, positioning, extended gearing function, homing, capture
- Stand alone programmability according to the standard IEC61131, ST language
- Capture input
- PC parametrization tool
-
Certifications
- CE
Does ISD fit your project? Try the drawing 3D
- ISD 4,6 Nm - Shaft 12 mm - Pot. 3 Pin CAN SER APD (Please Contact Us)
- ISD 4,6 Nm - Shaft 12 mm - Pot. 4 Pin CAN SER APD (Please Contact Us)
- ISD 8,5 Nm - Shaft 12 mm - Pot.3 Pin CAN SER APD (Please Contact Us)
- ISD 8,5 Nm - Shaft 12 mm - Pot.4 Pin CAN SER APD (Please Contact Us)
- ISD 8,5 Nm - Shaft 14 mm - Pot.3 Pin CAN SER APD (Please Contact Us)
- ISD 8,5 Nm - Shaft 14 mm - Pot.4 Pin CAN SER APD (Please Contact Us)
- ISD 12 Nm - Shaft 14 mm - Pot. 3 Pin CAN SER APD (Please Contact Us)
- ISD 12 Nm - Shaft 14 mm - Pot. 4 Pin CAN SER APD (Please Contact Us)
