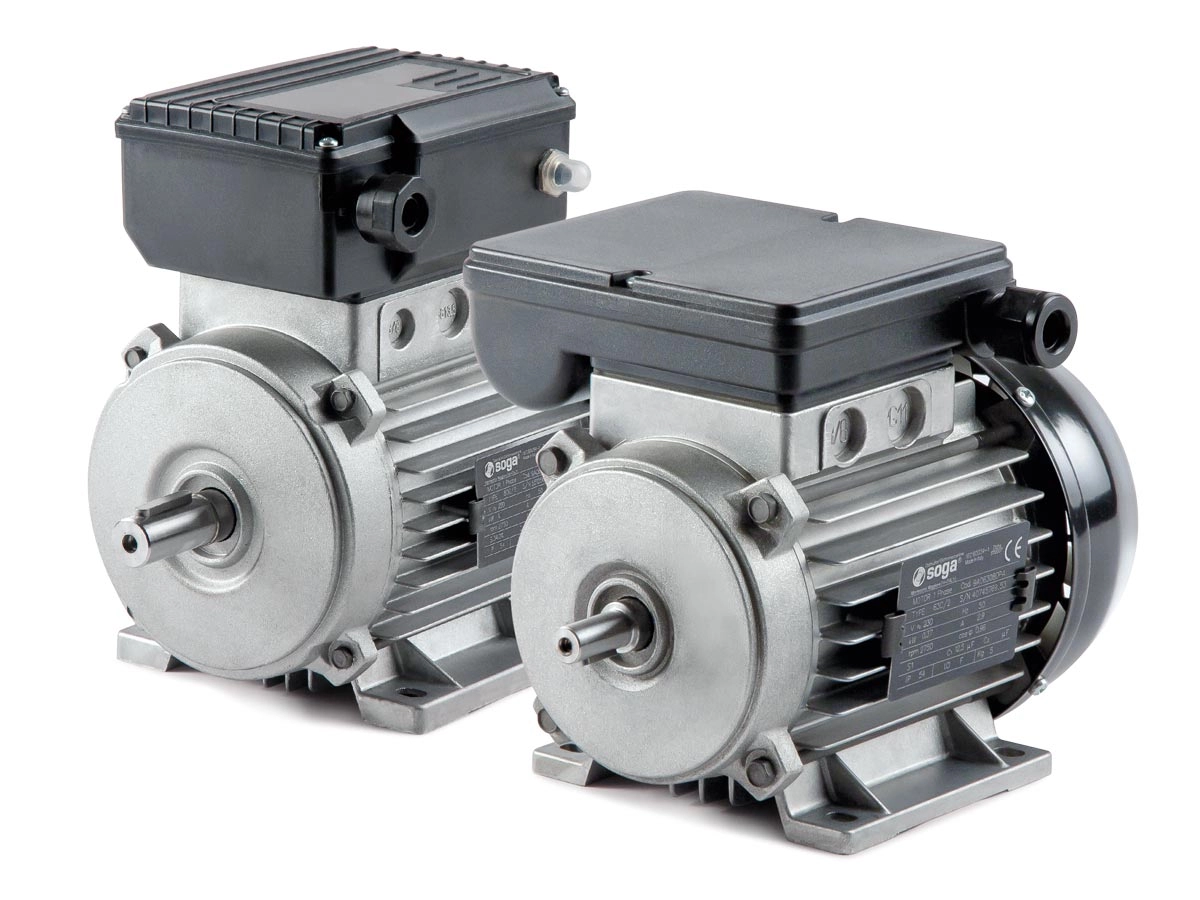

IEC Standard Induction Low Voltage AC – 1 Phase – 4 Poles – General Purpose
- Made in Italy
- Outputs up to 2,2 kW / 50 Hz
- Capacitor
- Squirrel cage design (aluminum housing)
- IP54 (TEFC)
- Lasting over time with any kind of use
- Special executions on request
| Model | IEC Frame Size [mm] | kW (S3 75%) – F Class 230V 50 Hz |
Speed [rpm] |
|---|---|---|---|
| MM1 63MB/4 | 63M | 0.18 | 1350 |
| MM1 71MB/4 | 71M | 0.3 | 1350 |
| MM1 71MC/4 | 71M | 0.37 | 1350 |
| MM1 80MA/4 | 80M | 0.37 | 1350 |
| MM1 80MB/4 | 80M | 0.55 | 1350 |
| MM1 80MC/4 | 80M | 0.75 | 1350 |
| MM1 80MD/4 | 80M | 1.1 | 1350 |
| MM1 90SB/4 | 90S | 1.1 | 1380 |
| MM1 90LA/4 | 90L | 1.5 | 1400 |
| MM1 90LB/4 | 90L | 1.85 | 1400 |
| MM1 90LC/4 | 90L | 2.2 | 1400 |
| MM1 100LB/4 | 100L | 2.2 | 1420 |
Standard couplings: B3 feet, B5 flange, B14 flange, B3/B5 feet & flange, B3/B14 feet & flange
