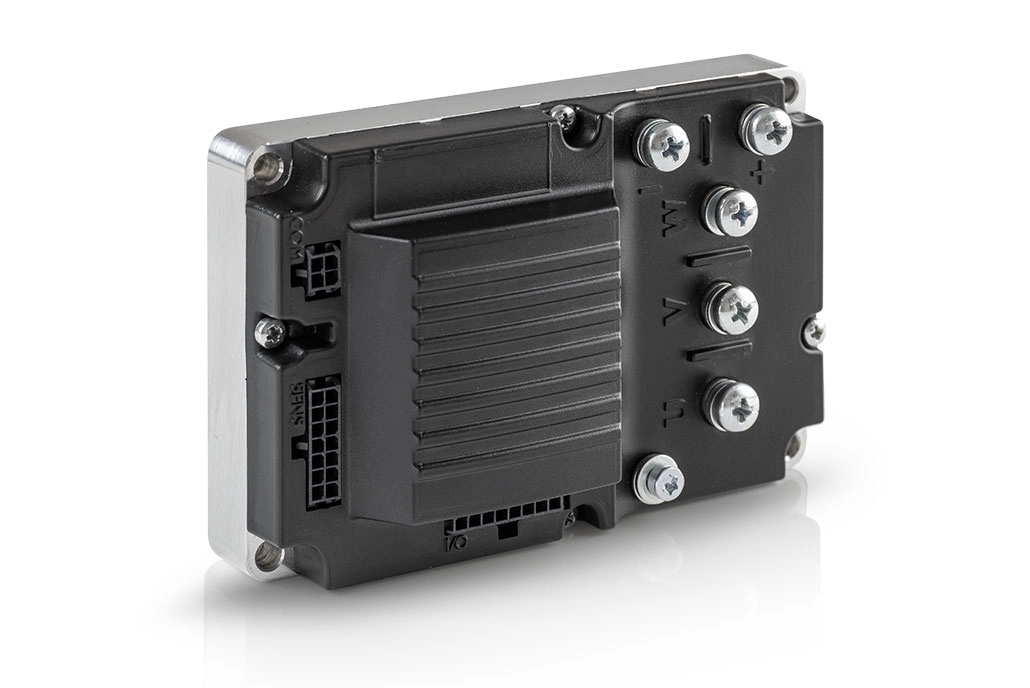

EPULSE30 and EPULSE50 are low voltage servodrives for E-MOBILITY battery powered applications.
EPULSE30 provides a current up to 50 A with a maximum installed power of 1,8 kW using a 36 VDC battery.
EPULSE50 provides a current up to 100 A with a maximum installed power of 3,6 kW using a 36 VDC battery.
Through EPULSE30 and EPULSE50 you’ll get the best price-performance-ratio.
Thanks to their compact design, these drives can be integrated also in smallest spaces without compromising on performance.
-
Control
- Intelligent and flexible control of the motors, thanks to their compatibility with different types of encoder
- Different control options: analogic, CANopen
- Regenerative hardware / software
-
Feedback
- ABZ + hallsensor, SIN/COS, Resolver (EPULSE50)
-
Power Supply
- from 20 to 75 VDC
Nominal Current
- EPULSE30 Nominal current of 30 A
- EPULSE50 Nominal current of 50 A
-
More
- PWN frequency 10 kHz
- 2 programmable digital inputs and outputs
- 1 CAN interface
- 1 serial interface for programming and diagnostics
- EPULSE30: Accelerometer, Gyroscope
- EPULSE50: Accelerometer
-
Compactness
- Compact sizes for applications with vibrations and shocks
Dimensions
- EPULSE30 110 x 65 x 40 mm
- EPULSE50 130 x 85 x 35 mm
