Nearby TSC

Stepless is the technology invented and developed by CMZ for low speed applications.

Through the closed loop control, a stepper synchronous motor can be controlled with modulated current by:

• eliminating any problem due to the step loss
• reducing the motor temperature

Compared to the brushless solution, on the same motor size the Stepless technology provides higher torque at low speed. This makes it most suitable for applications at low speeds.

TSC is the nearby drive 48Vdc for the open chain control of 3 stepper motors with encoder.

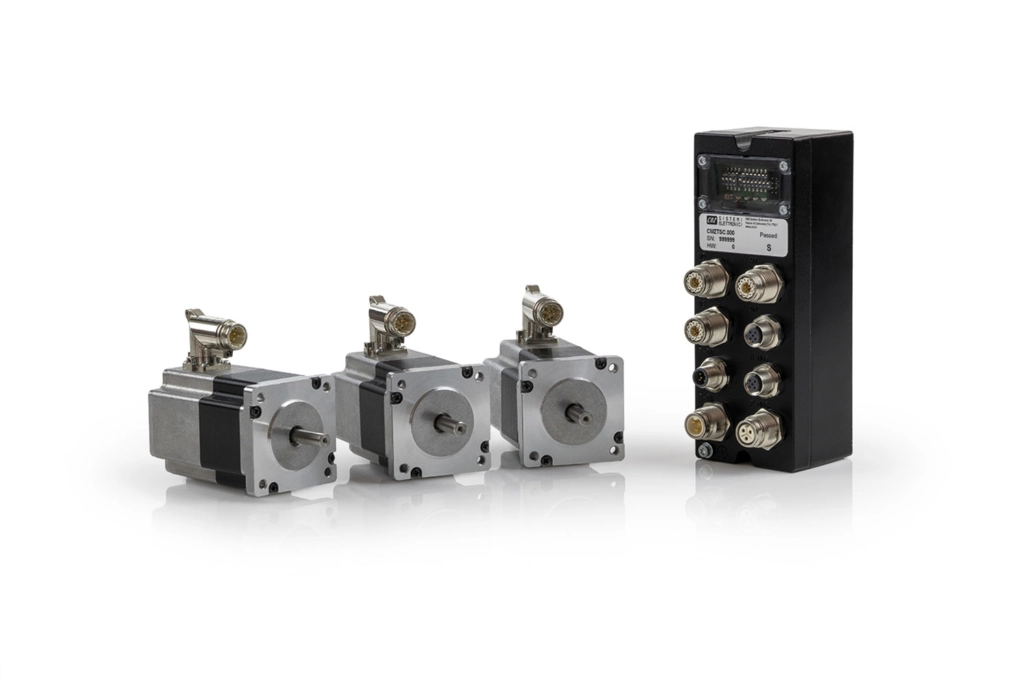

The solution offered by CMZ includes TSC drive supplied with 3 stepper motors of MM series (flange 60 mm).

Interface CANopen

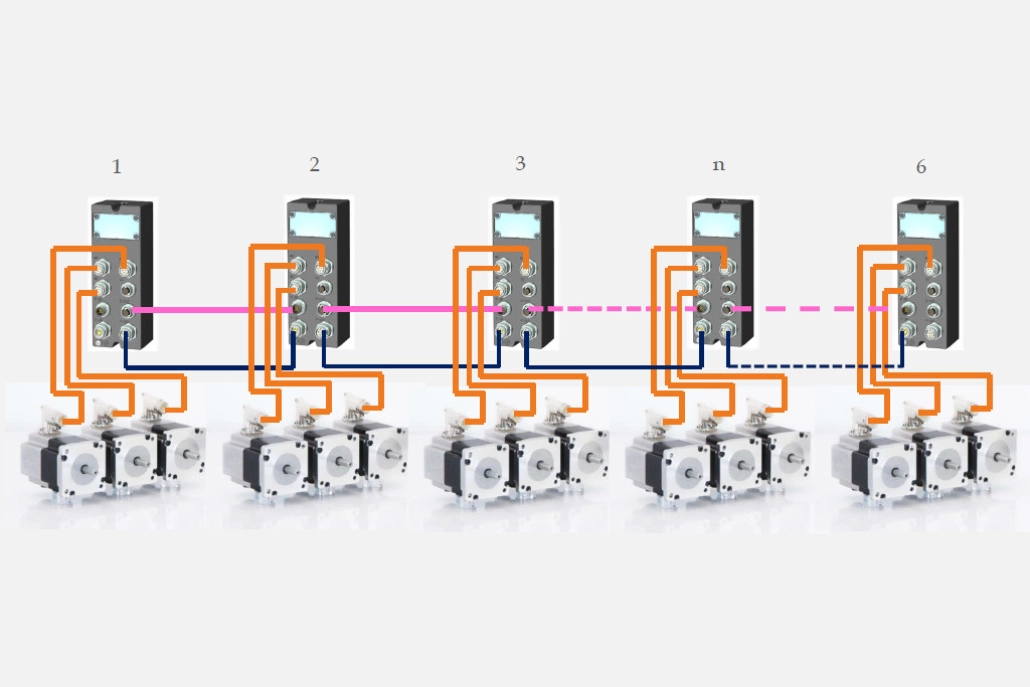

Daisy chain connection

IP65

TSC drive can also be equipped with the “TSC management” utility library developed by CMZ.

Dimensions mm: H 185 x W 70 x D 55 / 70,5

0,8 Kg
