CMZ produces and offers a variety of servo drives for motion control applications.

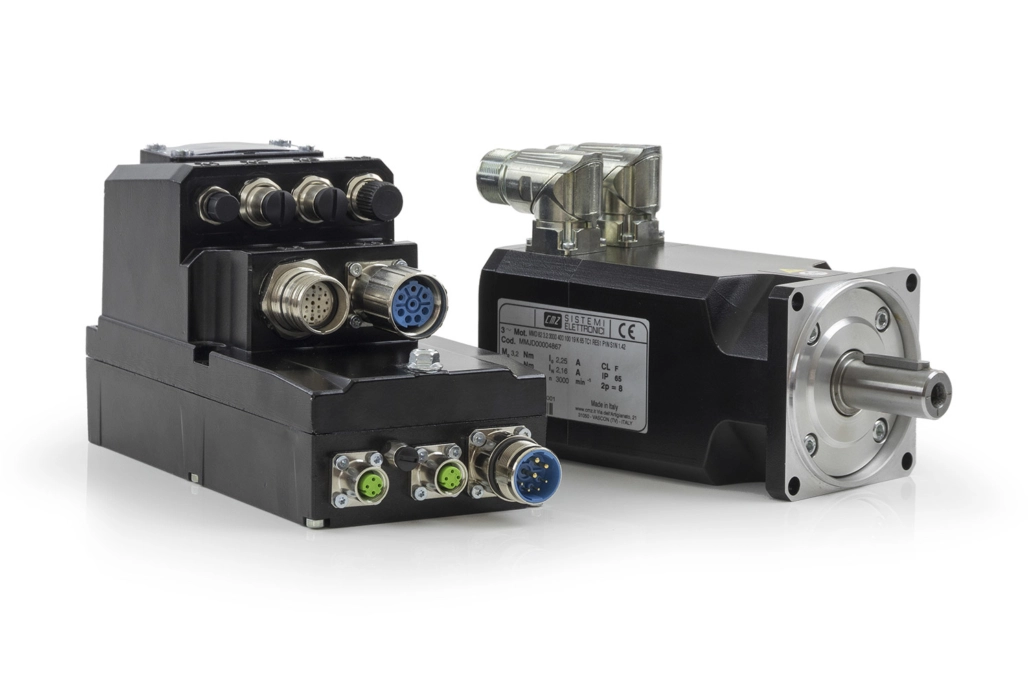

NBD nearby drive allows the management of motors with resolver, incremental encoder, incremental encoder with hall sensor, absolute encoder HIPERFACE.
IP65 protection makes possible to install NBD drives near the motor, directly on the mechanics of the machine.
The fieldbuses CANopen DS402 and DS402 over EtherCAT allow NBD to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.
Dimensions mm: H 122 x W 100 x D 200
1,9 Kg
-
Power Supply
- Nominal 560 Vdc (min 275 Vdc max 730 Vdc)
Control Supply
- 24Vdc
-
Rated Current
- 8 Arms – 10 Arms
Peak Current
- 15 Arms – 21 Arms
-
Feedback
- Resolver
- TTL incremental encoder + HES
- Single and multiturn absolute encoder HIPERFACE
-
On Board I/Os
- 3 digital IN PNP 24V
- 2 digital OUT PNP 24V
- 2 digital IN/OUT bidirectional PNP 1 analog IN +/- 10V
- Encoder master IN, + 5V out
-
Interface
- EtherCAT, CANopen
-
Protection
- IP65
-
Functional Features
- Stand alone programmability according to the standard IEC61131
- Integrated movement features: device profile DS402, interpolated mode, positioning, extended gearing function, homing, capture
- ST language
- Capture input
- PC parametrization tool
-
Certification
- CE
Does NBD fit your project? Try the drawing 3D
